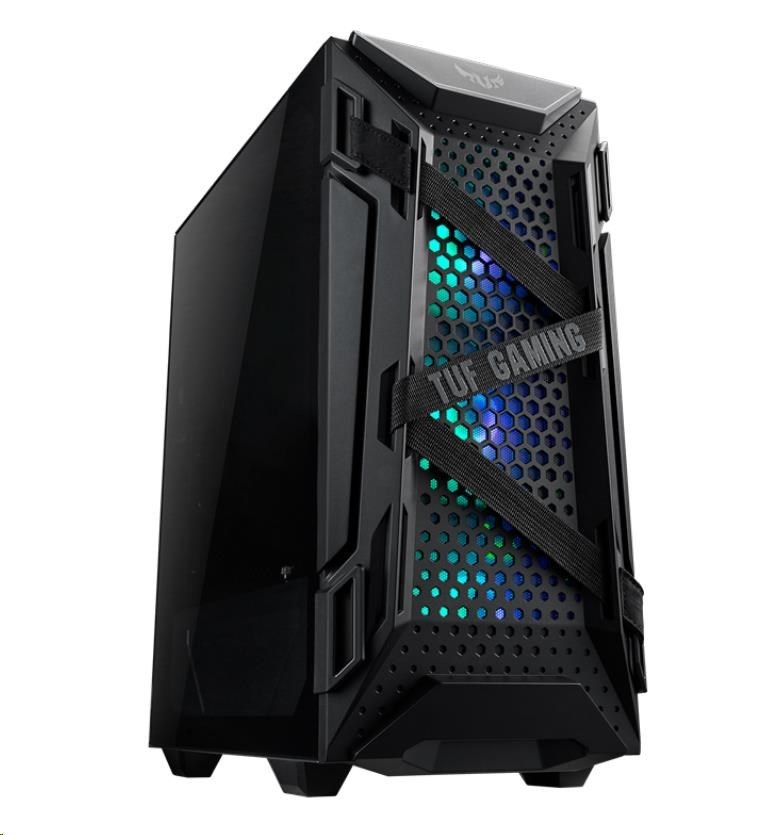

TUF Gaming GT301 Case

ASUS TUF Gaming GT301 ATX mid-tower compact case with tempered glass side panel, honeycomb front panel, 120mm AURA Addressable RGB fan, headphone hanger and 360mm radiator support.

• Stylishly design: Perforated honeycomb front panel to aid airflow and features a tempered-glass side panel to showcase your build’s internals in the compact case.


• Efficient cooling: Equipped with three 120mm Aura Sync addressable RGB-illuminated fans and one 120mm rear fan, plus up to six fan-mounting points for targeted airflow.


• Space reserved for 280/360mm water-cooling radiators in front and 120mm at rear


• Integrated 6 ports Aura Sync addressable-RGB controller hub and a dedicated front panel control button to create a stunning lighting effect


• Extensive storage options: up to 2 HDD (trays included) and 6x SDD (2x dedicated bracket included, one is on the power supply shroud) mounting locations


• Combat-ready: Customized headphone hook which can be hanged on both sides

Case Size

Mid Tower

Motherboard Support

ATX

Drive Bays

4 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay

Expansion Slots

7

Front I/O Port

1 x Headphone
1 x Microphone
2 x USB 3.1 Gen1
LED Control Button
Reset Button

Tempered Glass

Left Side

Radiator Support (Front)

120 mm
140 mm
240 mm
280 mm
360 mm

Radiator Support (Rear)

120 mm

Cooling Support (Front)

3 x 120 mm
2 x 140 mm

Cooling Support (Top)

2 x 120 mm

Cooling Support (Rear)

1 x 120 mm

Pre-installed Fans (Front)

3 x 120 mm
ARGB

Pre-installed Fans (Rear)

1 x 120 mm

Maximum CPU Cooler Height

160 mm

Maximum GPU Length

320 mm

Maximum PSU Length

160 mm

Removable Dust Filters

Front
Top
Bottom

Maximum Cable Management Space

30 mm

Dimensions

426 x 214 x 482 mm (L x W x H)

Weight

7.2 Kg
