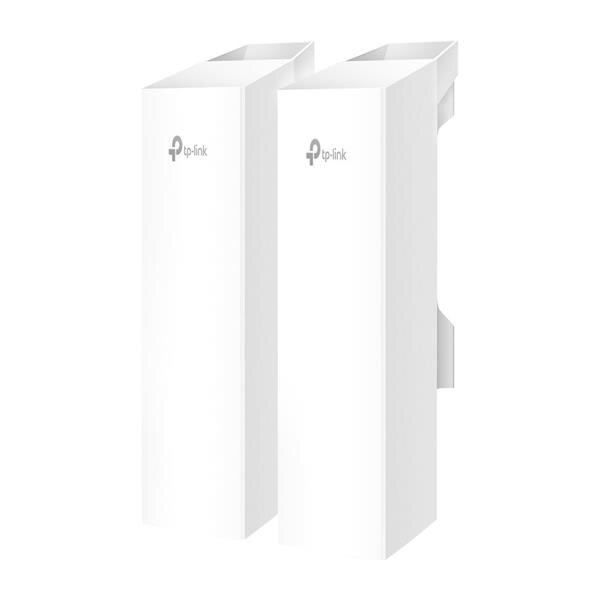

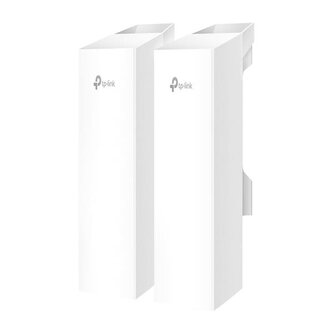

EAP215-Bridge KIT

Vnútorný/vonkajší prístupový bod Omada Wireless Bridge 5 GHz 867 Mb/s

802.11ac pre až 867 Mbps pri rýchlosti bezdrôtového prenosu na 5 GHz.1

Ideálne pre dlhodobý bezdrôtový prenos až do 5 km.2

Automatické párovanie a flexibilné LED diódy pre efektívne nasadenie.

3× Gigabit Ethernetové porty pre viac pripojení vysokorýchlostných IP kamier.6

Podpora Omada SDN pre vzdialený a centralizovaný manažment.

Odolná IP65 krytie proti počasiu a ochrana proti blesku 6kV zaisťujú vhodnosť pre všetky poveternostné podmienky.3

Podpora Passive PoE pre flexibilné nasadenie (adaptér je súčasťou balenia).



HARDWARE FEATURES

Interface 3x Gigabit Ethernet Ports6

Button Reset

Power Supply 12V DC / 24V Passive PoE (Passive PoE adapter included.)

Power Consumption 11.5W

Dimensions ( W x D x H ) 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)

Antenna Type Internal 2×2 Dual-polarized directional MIMO antennas

5 GHz: 11.0 dBi

Horizontal:35°, Vertical: 35°

Weatherproof Enclosure IP65

Mounting Pole mounting (Accessories included)

WIRELESS FEATURES

Coverage 5000m(16400ft)5

Wireless Standards IEEE 802.11 a/b/g/n/ac

Frequency 5 GHz

Signal Rate 5 GHz: Up to 867 Mbps

Wireless Functions • Mesh4

• MU-MIMO: 5G 2x2 MU-MIMO DL

• Load Balance

• Beamforming

• Seamless Roaming(802.11r)

• Airtime Fairness

• Multiple SSIDs:8

• Wireless Statistics

• Wireless Schedule

• Reboot Schedule

• RADIUS Accounting

• MAC Authentication

• Static IP/Dynamic IP

Wireless Security • VLAN

• Access Control

• Rogue AP Detection

• Captive Portal Authentication*4

• Maximum number of MAC Filter: 4,000

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power • CE:





• FCC:


MANAGEMENT

Omada App Yes

Restore & Backup Yes

Firmware update via Web Yes

NTP Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

SSH Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents • EAP215-Bridge KIT

• Passive PoE Adapter

• Power Cord

• Installation Guide

• Mounting Kit

Environment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing
