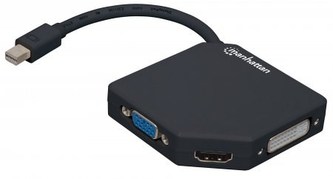

• 3-in-1 adapter converts a Mini DisplayPort signal to a 4K HDMI or 1080p DVI or VGA signal


• Delivers a high-quality digital video signal — ideal for using a Mini DP source with an HDMI, DVI or VGA display


• Supports Deep Color, high-bandwidth 3 Gbps applications and resolutions at 1080p (1920 x 1200p) for VGA and DVI or 4K (3840 × 2160p) for HDMI


• Allows monitor, TV or display to be configured in Extended or Mirrored modes


• HDMI configuration supports high definition video resolution up to 4K@30Hz (3840 x 2160p) and uncompressed digital 5.1 audio


• DVI configuration supports high definition video resolution up to 1080p@60Hz (1920 x 1080p); DVI does not support audio


• VGA configuration supports high-definition video resolution up to 1080p@60Hz (1920 x 1080p); VGA does not support audio


• Integrated design simplifies connections and eliminates cable tangles and clutter


• Lifetime Warranty

Specifications:

Standards and Certifications

• UL 20276


• DisplayPort v1.2


• FCC


• CE

  Connections


• Mini DisplayPort 20-pin male


• HDMI 19-pin female


• DVI 24+5-pin female


• VGA/HD15 15-pin female


• Nickel-plated contacts


• Molded PVC and ABS Shell

  General


• 8-bit and 10-bit Deep Color support


• 3 Gbps bandwidth


• Maximum single link resolution
  3840 x 2160 (4K@30Hz) for HDMI
  1920 x 1200 (1080p@60Hz) for DVI and VGA


• One-lane, one-direction, four-line connection support


• Passive

  Video Resolutions


• VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200


• DTV/HDTV/UHDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz

  Physical


• Cable length: 25 cm (10 inches)


• Housing: 7.5 x 4 x 1.8 cm (2.95 x 1.8 x 0.7 in.)


• Weight: 48 g (1.7 oz.)


• Housing: plastic

  Operating Environment


• Operation Temperature: 0 – 40°C (32 – 104°F)


• Storage Temperature: -20 – 60°C (-4 – 140°F)


• Humidity (noncondensing): 0 - 80%

  System Requirements


• Windows XP/Vista/7/8.1/10, Linux or Mac 9.x/10.x or above

  Package Contents


• 3-in-1 4K Mini DisplayPort Adapter


• Quick Instruction Guide


•
