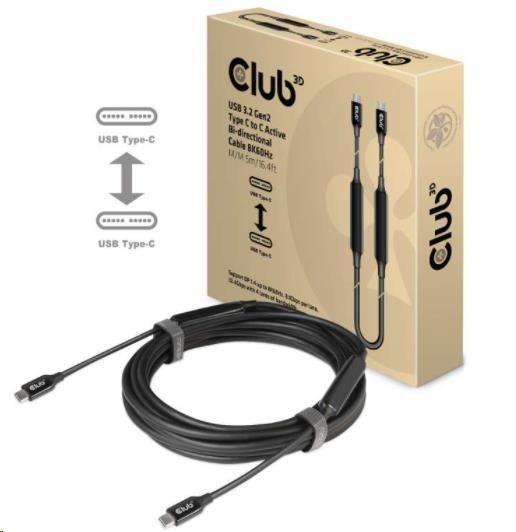

USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft

The Club 3D CAC-1535 is an USB Type C to USB Type C Bi-directional Active Cable with a Re-timer chipset for enhancing Video, Data and Power that reaches up to 5 meters / 16.40ft . For video its compatible with DP1.4 standards with a theoretical resolution of up to 8K@60Hz. For data it is compatible with USB3.2 Gen 2 with a maximum of 10Gbps of data transmission and for power it is capable of delivering a max of 60W (20V/3A) PD Charging.

This cable combines video,data and power functions for connecting USB Type C PC or mobile device to a USB Type C display/VR/HardDrive/
Dock/PD charger. In addition this cable is bidirectional which makes it
simple to use. Please make sure that the devices connected support DisplayPort™ Alt Mode Functions.

• Supports USB Type C male to male Bi-directional transmission


• Support max 5m/16.40ft transmission distance with stable signal


• Support DP 1.4 with Max theoretical resolution up to 8K/60Hz. 8.1Gbps per lane, 32.4Gbps with 4 lanes of bandwidth


• Compatible with USB 3.2 Gen2 with a maximum of 10Gbps data transmission, downward compatible with lower versions (USB 3.1/USB3.0/USB2.0)


• Supports a maximum of 60W (20V/3A) PD Charging two way charging, the product supports positive and negative connections, supports hot plugging.


• Offers a perfect solution for VR Gaming


• Built in signal enhanced Re-timer chip and E-Mark chipfor enhancing functions over longer distance than a passive USB C cable and protecting your devices while PD charging.

TECHNICAL SPECIFICATIONS
