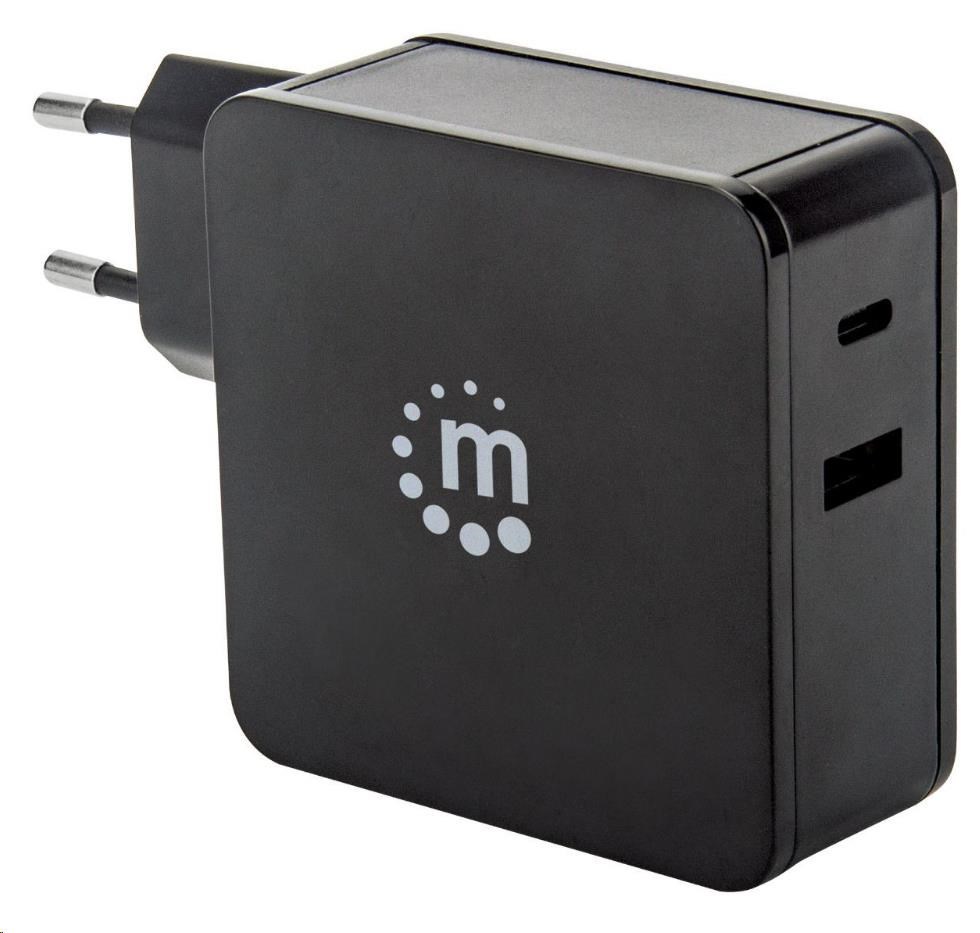

Power Delivery Wall Charger – 60 W
USB-C Power Delivery Port (up to 60 W), USB-A Charging Port (up to 2.4 A), Black

• Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging ports


• Charges two different devices simultaneously with ideal potential energy


• USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device

Power up your devices with a portable, powerful Power-Delivery-capable charger.
Enjoy complete charging power with the Manhattan Power Delivery Wall Charger – 60 W. This wall charger uses Power Delivery technology to power up any device with a USB-C charging port, from laptops to mobile phones, and the additional USB-A port can quickly charge any handheld device or tablet. The perfect companion for travelers with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Wall Charger – 60 W also intelligently safeguards itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.

Features:

• Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging ports


• Charges two different devices simultaneously with ideal potential energy


• USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device


• USB-A port delivering up to 5 V / 2.4 A to quickly charge a portable device


• Overload, overcurrent and overheating protection


• Compact, portable and stylish design for easy travel


• Three-year warranty

Specifications and Certifications

• USB 2.0


• PD 3.0


• FCC


• UL


• CE


• RoHS


• WEEE


• Ports


• One USB-C with Power Delivery (PD 3.0)


• One USB-A


• General


• AC input: 100 – 240 V; 50 – 60 Hz


• USB-C output: 5 – 20 V; maximum 3 A; 60 W


• Voltage/current settings (maximum):


• - USB-C: - 5 V / 3 A - 9 V / 3 A - 12 V / 3 A - 15 V / 3 A - 19 V / 3 A - 20 V / 3 A - USB-A: - 5 V / 2.4 A Input Characteristics


• AC rated voltage: 100 – 240 V


• Frequency range: 50 – 60 Hz (±1 Hz)


• Current: ? 1 A at 100 VAC 60 HZ


• Output Characteristics


• Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V


• Current: 3 A maximum (at constant voltage mode)


• Rated power: 60 watts maximum


• Overshoot voltage: ? 5%


• Protection Characteristics


• Short circuit (SCP) with auto-recovery mode


• Overvoltage (OVP) with auto-recovery mode


• Overcurrent (OCP) — current limit: 150% (max)


• Overtemperature (OTP)


• Physical


• Dimensions: 7 x 7 x 3 cm (2.76 x 2.76 x 1.18 in)


• Weight: 0.16 kg (4.9 oz.)


• Housing: plastic


• Operating Environment


• Operation Temperature: 0 – 30°C (32 – 86°F)


• Storage Temperature: -20 – 65°C (-4 – 149°F)


• Humidity (noncondensing): 10 – 90%


• Package Contents


• Power Delivery Wall Charger – 60 W


• Quick Instruction Guide
