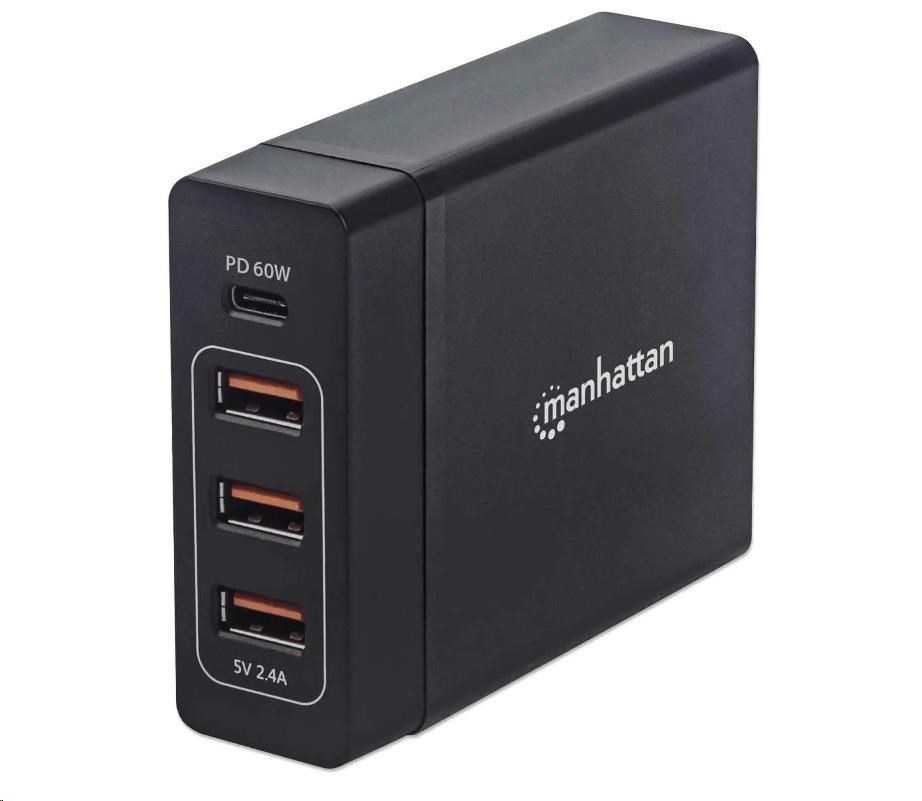

Power Delivery Charging Station - 72 W

One USB-C Power Delivery Port up to 60 W, Three USB-A Charging Ports Sharing up to 12 W / 2.4 A, Black

• Charging station solution with one USB-C Power Delivery (PD 3.0) and three USB-A charging ports


• Charges different devices simultaneously with ideal potential energy


• USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device

Device power with a portable, powerful Power-Delivery charger
Enjoy complete charging power with the Manhattan Power Delivery Charging Station - 72 W. This wall charger's USB-C port uses Power Delivery technology to determine the power needs of your smartphone, tablet or other compatible device and supplies it at the fastest, safest rate it can. The additional USB-A ports supply power at up to 2.4 A to quickly charge your devices. The perfect power companion with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Charging Station - 72 W also intelligently safeguards itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.

Features:

• Charging station solution with one USB-C Power Delivery (PD 3.0) and three USB-A charging ports


• Charges different devices simultaneously with ideal potential energy


• USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device


• Three USB-A ports sharing 12 W to charge a portable device with each port supporting up to 2.4 A


• Overload, overcurrent and overheating protection


• Compact, portable and stylish design for easy travel


• Three-year warranty

Specifications and Certifications

• Standards and Certifications
  USB 2.0
  PD 3.0
  FCC
  UL 62368
  CE
  RoHS
  WEEE
  Ports
  One USB-C with Power Delivery (PD 3.0)
  Three USB-A


• General
  AC input: 100 – 240 V; 50 – 60 Hz
  USB-C output: 5 – 20 V; maximum 3 A; 60 W
  Voltage/current settings (maximum):
  - USB-C: - 5 V / 3 A - 9 V / 3 A - 12 V / 3 A - 15 V / 3 A - 20 V / 3 A - USB-A: - up to 5 V / 2.4 A Input Characteristics
  AC rated voltage: 100 – 240 V
  Frequency range: 50 – 60 Hz (±1 Hz)
  Current: ? 1 A at 100 VAC 60 HZ


• Output Characteristics
  Rated voltage: 5 / 9 / 12 / 15 / 20 V
  Current: 3 A maximum (at constant voltage mode)
  Rated power: 72 watts maximum
  Overshoot voltage: ? 5%


• Protection Characteristics
  Short circuit (SCP) with auto-recovery mode
  Overvoltage (OVP) with auto-recovery mode
  Overcurrent (OCP) — current limit: 150% (max)
  Overtemperature (OTP)


• Physical
  Dimensions: 9.1 x 7.5 x 2.75 cm (3.58 x 2.95 x 1.08 in)
  Weight: 0.22 kg (7.76 oz.)
  Housing: plastic


• Operating Environment
  Operation Temperature: 0 – 30°C (32 – 86°F)
  Storage Temperature: -20 – 65°C (-4 – 149°F)
  Humidity (noncondensing): 10 – 90%


• Package Contents
  Power Delivery Charging Station - 72 W
  Quick Instruction Guide
