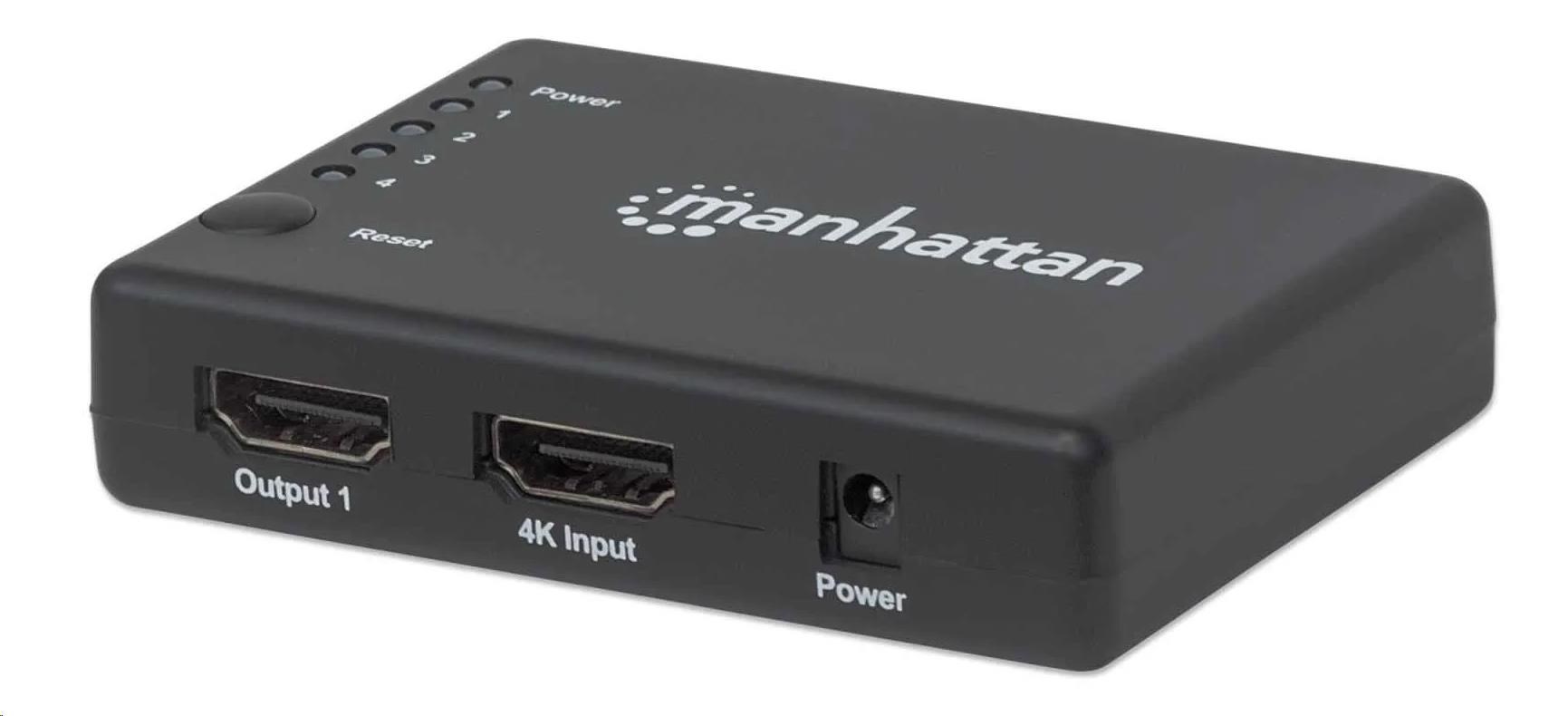

4K Compact 4-Port HDMI Splitter
4K@30Hz, AC Powered, Black

• Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays


• 4K@30Hz resolution, full 3D video and Deep Color


• Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays

Brilliant 4K on Four Compatible Screens
Watch your favorite source on each connected TV
Compatible with any HDMI source, this 4K 4-port HDMI Splitter takes an input signal — from a Blu-ray player, set-top box, satellite receiver, etc. — and copies it to as many as four displays at or below the 4k spec. It’s a great choice to be able to watch the show or movie you’re playing on each connected TV in your house. This powered 4K HDMI splitter includes a 5 V DC power adapter that ensures the best signal quality to your displays.

Compact yet Powerful
Don’t let its size fool you. This splitter may take up very little space (with its longest side at 3.2 in.), but it packs serious capability. If your source and displays support 4K resolution, this 4K splitter will deliver that signal to each display with no loss of quality.

High-Quality Video on Multiple Displays
One 4K (and Earlier HDMI Versions) Input
This splitter was made to help you get the most out your 4K source, but you can connect and enjoy any HDMI source. The audio/video from your source gets transmitted to your displays at the HDMI version your source offers. Even if it’s an 8K source, this splitter will still deliver beautiful 4K@30Hz signal quality. It also supports your source’s compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio so you can listen to your source the way it was meant to be heard.

Four 4K (and Earlier HDMI Versions) Outputs
This 4K splitter was made to support 4K HDMI on up to four 4K displays, but it supports any display type at or below 4K@30Hz. So, if your displays only offer 1080p or 720p (or even earlier) resolution, this splitter will provide that signal version so you can enjoy what you want to watch. You get all supported audio and video types on each connected display, too.

Connection & Power LEDs
The splitter includes LEDs that let you know right away which sources are connected and receiving the source signal. It also offers an LED to show you that the splitter is receiving the power it needs to deliver the right signal to your displays.

Benefits of a 4K Splitter
This 24-port switch gives you more ways to connect to devices and switches. Two Gigabit SFP ports and two Combo SFP/RJ45 ports let you add more copper ports, connect to other switches and fiber devices, or do any combination of the three. The console port lets you configure the switch settings via computer using an RJ45 to DB9 cable.

View one source on up to four displays
Delivers your source’s audio/video capability to the displays at/below 4K@30Hz HDMI
LEDs inform you of which displays are active with the transmitted signal

Features:

• Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays


• 4K@30Hz resolution, full 3D video and Deep Color


• Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays


• Supports 36-bit Deep Color (12-bits per channel) and sYCC Color Space


• Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio


• HDCP compliant


• Multiple splitters (five total) may be cascaded up to support 16 4K displays


• Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more


• Plug and play


• Gold-plated contacts for corrosion-free connections


• Three-year warranty

Specifications:

Standards and Certifications
HDCP 1.4
CTS 1.4b
CE
FCC
RoHS2

General
Source-to-splitter and splitter-to-display range: up to 15 m (49 ft.)
Power adapter: 5 VDC / 1 A; 70 cm (2.3 ft.)
Power consumption: 5 W

Connections
One HDMI female (input)
Four HDMI female (output)
One 5 VDC power female (input)

Signal Input/Output
Input video signal: 0.5 – 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Maximum single-link range: 10.2 Gbps and 4096x2160 at 24 Hz resolution
Output video: HDMI 1.4, HDCP 1.4

Supported Video Resolutions
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz

Physical
LED indicators: power and port connection
Reset button
Dimensions: 81 x 58 x 18 mm (3.2 x 2.3 x 0.7 in.)
Weight: 0.3 kg (10.6 oz.)
Housing: plastic

Operating Environment
Operation Temperature: 0 – 40°C (32 – 104°F)
Storage Temperature: -20 – 60°C (-4 – 140°F)
Humidity (noncondensing): 0 – 96%

Package Contents
4K Compact 4-Port HDMI Splitter
Power adapter
Quick Instruction Guide
