Hi-Speed USB 2.0 Automatic Sharing Switch

1x2 Ports, Dual Control, Auto-Sensing USB 2.0 Type-A to Type-B Switch

Model Number: 162005

Easily connect and share a USB peripheral.

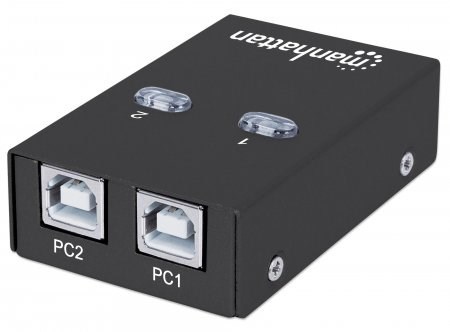

The Manhattan Hi-Speed USB 2.0 Automatic Sharing Switch easily allows two computers to share a USB device. It's ideal for home and office use where users need to share a USB cable modem, printer, digital camera, scanner, external storage drive or other peripheral. Use the convenient access-on-demand switching for activation with a single click of an onscreen button, or use on-board switches to manually select an active computer.

Quick and Easy Installation
Plug-and-play installation is easy with Windows systems. The Manhattan Hi-Speed USB 2.0 Automatic Sharing Switch requires no special drivers or external power supply. Connect using the included USB cables for fast access to popular devices.

Features:

Share a single USB device between two computers
Individual toggle switches select USB devices for each computer
Supports idle time-out switching
Easy-to-read onboard and onscreen LED indicators monitor status
Overcurrent protection and hot-swappable
Compatible with all USB-equipped computers
Plug and play; Windows compatible; requires no external power supply
Three-Year Warranty

Specifications:

Standards and Certifications
USB 2.0
FCC
CE
RoHS
WEEE

General
Transfer speeds: 480 Mbps
LED indicators (2)
Mechanical switches (2)
Bus powered

Ports
Type A (1)
Type B (2)

Physical
Dimensions: 68 x 43 x 20 mm (2.7 x 1.7 x 0.8 in.)
Weight: 74 g (2.6 oz.)
USB type-A to type-B cable length: 1.5 m (5 ft.)
Housing: ABS plastic

System Requirements
USB-enabled PC system
Windows XP/Vista/7/8
Available USB port

Power
Supply current from USB: 500 mA

Package Contents
Hi-Speed USB 2.0 Automatic Sharing Switch
USB cable
Instructions
Software CD
