WIRELESS
Standards and Protocols Wi-Fi 6

IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ac/ax 2.4 GHz

WiFi Speeds AX3000

5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Capacity High Dual-Band

Allocate devices to different bands for optimal performance
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth

Working Modes Router Mode

USB Tethering Mode
3G/4G USB Modem Mode
Hotspot Mode (WISP Mode)
Access Point Mode
Range Extender Mode
Client Mode

SECURITY
Network Security SPI Firewall

Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server • OpenVPN Server

• PPTP VPN Server
• L2TP VPN Server
• Wireguard VPN Serve

VPN Client Open VPN Client

• PPTP VPN Client
• L2TP VPN Client
• Wireguard VPN Client

WiFi Encryption WPA2-PSK

WPA3-Personal
WPA/WPA2-Enterprise

HARDWARE
Ethernet Ports 2.5× Gigabit WAN Port

1× Gigabit LAN Port

USB Support 1× USB 3.0 Port
Buttons WPS/Reset Button

ECO Switch

Power 5V/3A,External DC power adapter
SOFTWARE FEATURES
Quality of Service QoS by Device
WAN Type Dynamic IP

Static IP
PPPoE
PPTP
L2TP

Management Features Tether App

Webpage

DHCP DHCP Server

DHCP Client List
Address Reservation

Protocols IPv4

IPv6

OTHER
Network Services Enabled by Default Web Server

Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP

Certifications FCC, CE
Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power CE:

<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity 2.4GHz

11b 1M:-96dBm
11n HT20M MCS7:-73dBm
11n HT40M MCS7:-70dBm
5GHz
11a 6M:-93dBm
11ax HE20M MCS11:-63dBm
11ax HE40M MCS11:-60dBm
11ax HE80M MCS11:-59dBm

PHYSICAL
Dimensions (W×D×H) 4.1 × 3.6 × 1.2 in

(105 × 91.3 × 30 mm)

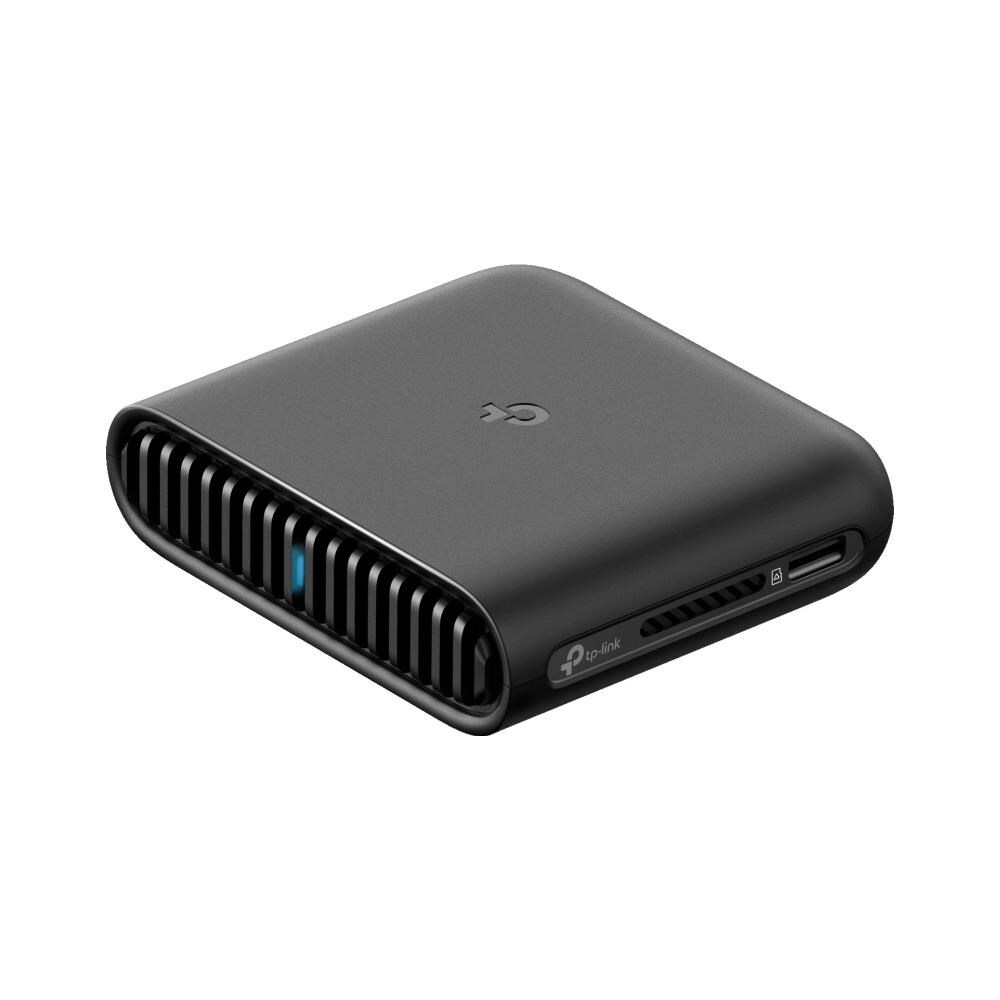

Package Content TL-WR3002X

Power Adapter
RJ45 Ethernet Cable
USB Cable
Quick Installation Guide
