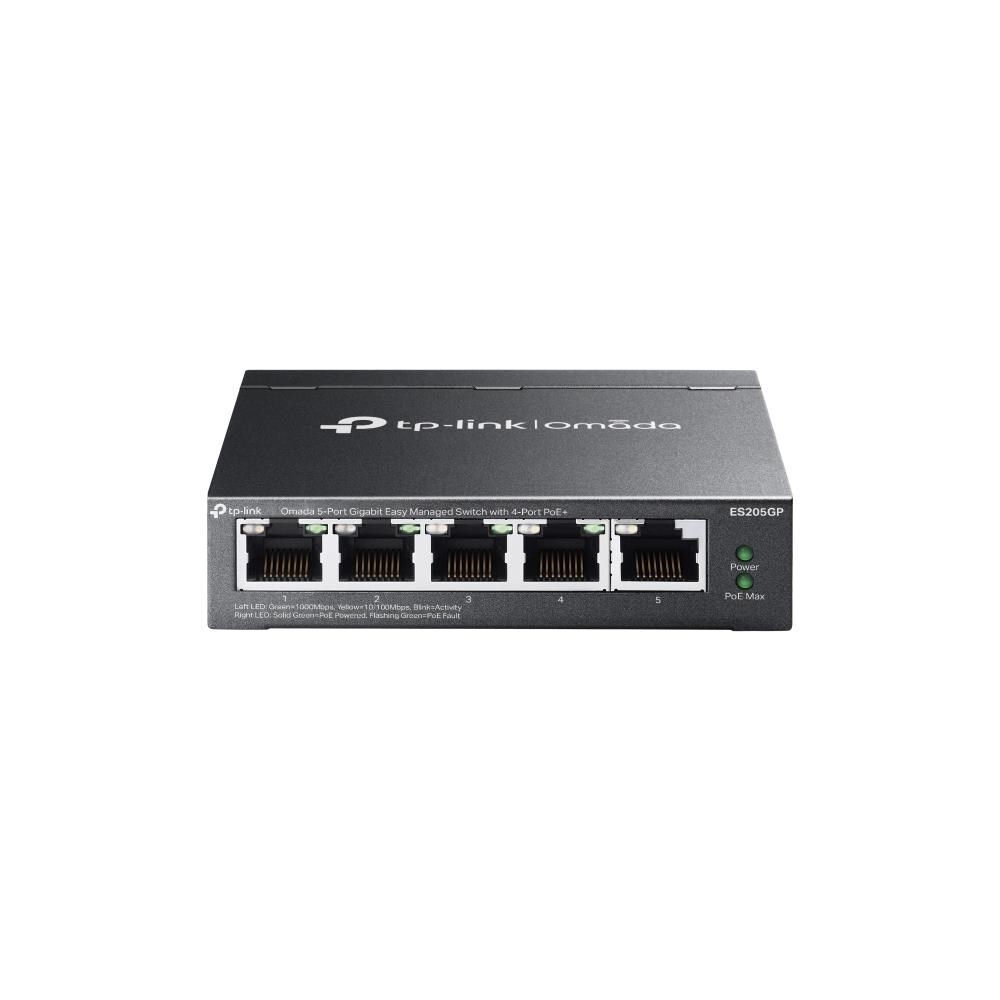

TP-Link OMADA ES205GP

Omada 5portový gigabitový Easy Managed Switch se 4 porty PoE+

• 5× 10/100/1000Mb/s RJ45 portů (4× PoE+ s podporou standardu 802.3at/af)


• Napájecí rozpočet 65W, až 30W pro každý PoE port*


• Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí


• Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada


• Až 250 m PoE, QoS, automatické obnovení PoE‡ a izolace portů pro spolehlivou síťovou infrastrukturu pro dohled


• Automatická prevence smyček, VLAN a IGMP Snooping


• Bezhlučný provoz díky bezventilátorovému designu


• Odolné kovové pouzdro a design pro umístění na stůl nebo montáž na stěnu

Learn more about TP-Link PoE technology >

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-easy-managed/es205gp/

Technické specifikace

HARDWARE FEATURES
Interface • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity Fanless
Installation • Desktop

• Wall Mount

Physical Security Lock ?
Power Supply DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance

Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS

• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?

L2 Features • Static Link Aggregation

• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

Transmission Method Store-And-Forward
MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller
• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI

• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Contents • ES205GP

• Power Adapter
• Installation Guide
• Rubber Feet

Environment • Operating Temperature: 0?~40? (32?~104?)

• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
