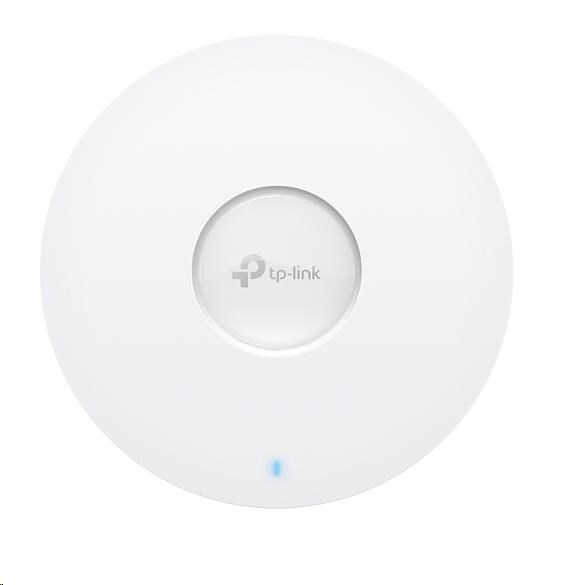

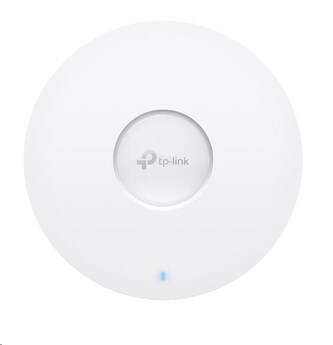

TP-Link EAP673

Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop

• Extrémně rychlé rychlosti WiFi 6 (574 Mbps na 2.4 GHz + 4804 Mbps na 5 GHz).


• Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.


• 160 MHz kanál zdvojnásobuje přenos dat při maximální rychlosti na jednom streamu.


• Pokročilé funkce: Podporuje bezproblémový roaming, Omada Mesh a další.


• Podporuje napájení přes 802.3at PoE+ a DC (adaptér není součástí balení) pro flexibilní instalace.

Více informací o Omada Wi-Fi 6>?

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap673/

Technické specifikace

HARDWARE FEATURES
Interface 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE

• 12 V / 2 A DC (Power adapter not included)

Power Consumption • EU: 20.8 W

• US: 22.3 W

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type Internal Omni

• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi

Bluetooth V5.2
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 140?(1500 ft2)*
Concurrent Clients 250+
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO (5G: 4x4 DL/UL MU-MIMO)
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r) §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication§

• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP673

• Ceiling/Wall Mounting Kits
• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
