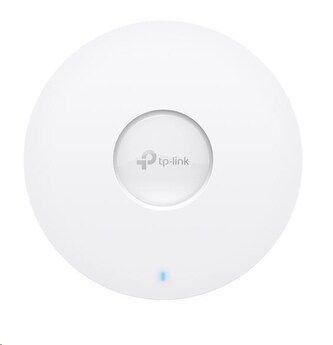

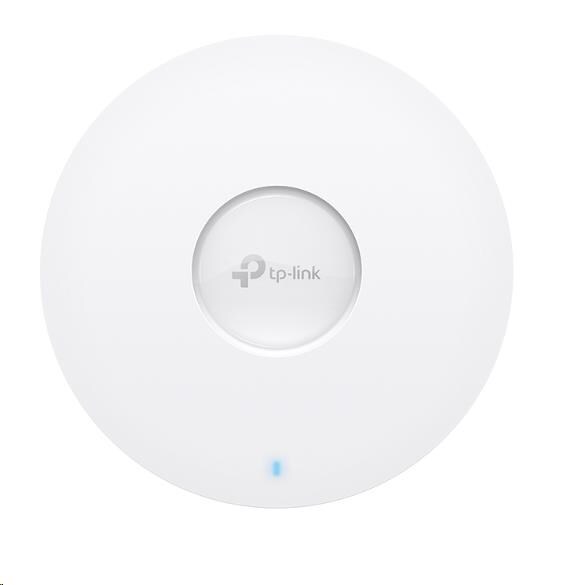

TP-Link EAP670 v2

Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop

• Bleskově rychlá WiFi 6 s rychlostí (574 Mb/s na 2,4 GHz + 4804 Mb/s na 5 GHz).


• Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.


• Kanál 160 MHz zdvojnásobuje data ve špičkách přenosu na jednom streamu.


• Pokročilé funkce: Podporuje bezproblémový roaming, Omada Mesh a další.


• Podporuje napájení 802.3at PoE+ i DC (adaptér je součástí balení) pro flexibilní instalaci.

Více informací o Omada Wi-Fi 6>?

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap670/v2/

Technické specifikace

HARDWARE FEATURES

Interface
1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button
Reset

Power Supply
• 802.3at PoE • 12 V / 2 A DC (Power Adapter included)

Power Consumption
• EU: 20.8 W • US: 22.3 W

Dimensions ( W x D x H )
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type
Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi

Mounting
Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Client Capacity
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
• 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps

Wireless Functions
• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client

Wireless Security
• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
• CE: • FCC:

MANAGEMENT

Omada App
Yes

Centralized Management
• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller

Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.

OTHERS

Certification
CE, FCC, RoHS

Package Contents
• EAP670 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment
• Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
