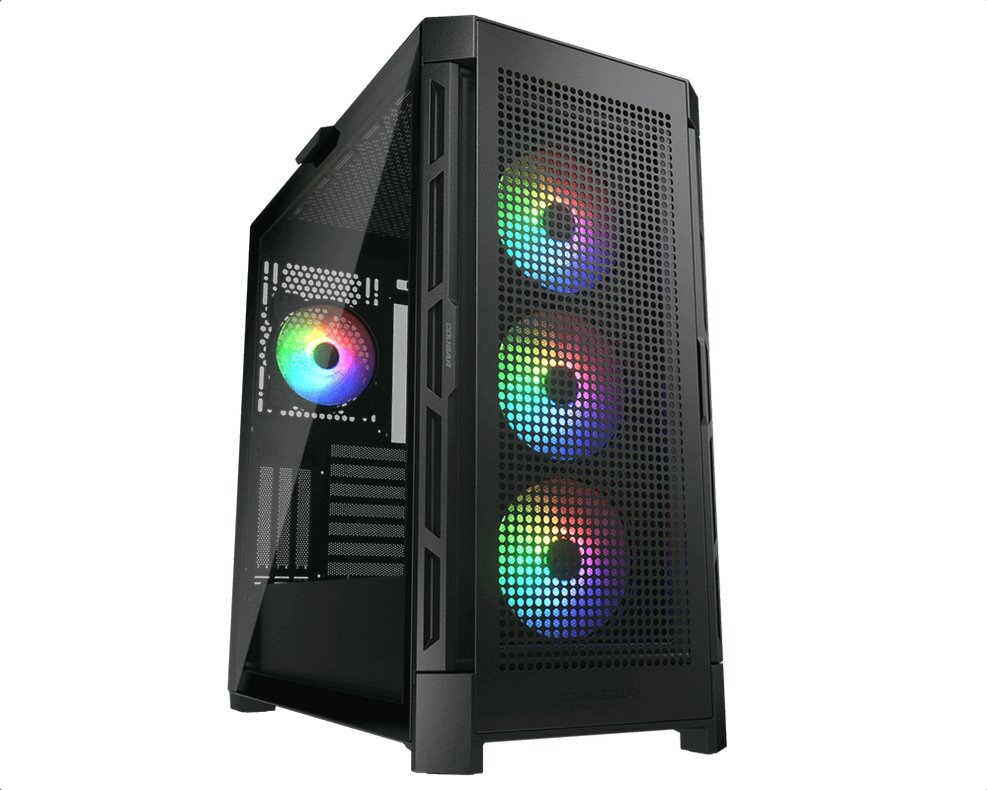

AIRFACE PRO RGB
Ingenious Open Layout Design
Airface Pro RGB is a combination of flexible design, convenient assembly, and superior cooling performance. The airflow front panel brings superior airflow and optimized cooling performance. It is the latest creation of the Airface series, providing a new upgrade for flexibility and ingenious open layout design. Airface Pro RGB is a 240mm wide-body design that offers abundant space for new flagship monster graphics cards and impressive cooling capacity for 9 fans and a 190mm CPU cooler.

Aesthetic and Functional
The innovative quick slide dust filter is a highly functional feature that merges aesthetically. Stylish design at the edges offers you uniqueness that no one can compare. You can easily slide off the dust filter without removing the front panel.

Removeable Top Panel and Detachable Front Bracket
The removeable top panel and detachable front bracket provide you fully open area to the case interior. With extra-large space, you will find assembly is more convenient and easier than ever!

Advanced Cable Management Bar with Adjustable Graphic Card Holder
The cable management bar combines the graphic card holder to bring you an excellent building experience. This design provides you with a clear view and helps your high-performance components with better stability.

Incredible RGB Lighting
Airface Pro RGB has four 120mm ARGB fans. You are free to control several amazing lighting effects with the dedicated RGB button. The built-in LED controller is compatible with motherboards’ 5V ARGB connection for system-wide lighting synchronization.

Unbeatable Cooling Performance
The airflow panel is forged from premium metal and perforated with 5.0mm diameter holes. With the superior cooling potential for up to 9 fans and a 190mm CPU cooler, providing extensive fresh air intake that brings you unbeatable cooling performance.

Abundant Space for High-end Components
Airface Pro RGB’s 240mm wide-body design allows much larger interior space with better cooling performance and cable management. It can surely fit a E-ATX motherboard, a 390mm graphic card, two 3.5” HDDs and two 2.5” SSDs, which allows for the most extreme system builds.

Strong Cooling Performance
Airface Pro RGB’s interior space supports up to nine fans, a 360mm water cooling radiator, and a 190mm height CPU cooler. This immense cooling potential refrains overheating on your critical components.

Product Name Airface Pro RGB
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD) 240 x 496 x 465 (mm) / 9.4 x 19.5 x 18.3 (in)
240 x 496 x 465 (mm)

I/O Panel
Type C Gen 2 (Key A 20-pin connector) x 1 , USB 3.0 x 2, USB 2.0 x 1,
4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay 2 (2 SSD trays included)
Expansion Slots 7+3
Vertical GPU Support Yes
Cooling Fan Support
Front 120mm x 3 / 140mm x 2
Top 120mm x 3 / 140mm x 2
PSU Cover 120mm x 2
Rear 120mm x 1 / 140mm x 1
Pre-installed Fans
Front 120mm ARGB fan x 3
Rear 120mm ARGB fan x 1
Speed 1000 RPM
Connector 5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans 9
Water Cooling Support
Front 360mm / 280mm / 240 mm / 140 mm / 120mm
Top 360mm / 280mm / 240 mm / 140 mm / 120mm
Rear 140 mm / 120mm
Transparent Left Panel Tempered Glass
Onboard Lighting System Yes
RGB Sync with M/B Yes
Max. Graphics Card Length 390 (mm) / 15.4 (in)
Max. CPU Cooler Height 190 (mm) / 7.5 (in)
Max. PSU Length 200 (mm) / 7.9 (in)
* Please choose either of front or top to install a 360mm radiator.
