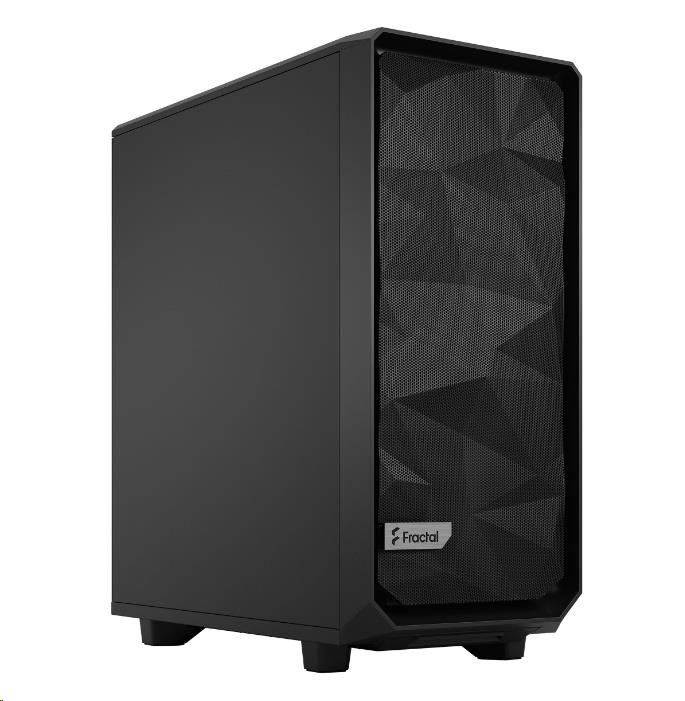

Meshify 2 Compact

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic


• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm


• Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

TECHNICAL SPECIFICATIONS

3.5"/2.5" Universal drive mounts
2 (included)

Dedicated 2.5" drive mounts
4 (2 included)

Expansion slots
7

Front interface
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

Total fan mounts
7x 120 or 4x 140 mm and 2x 120 mm

Front fan
3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)

Top fan
2x 120/140 mm

Rear fan
1x 120 mm, (1x Dynamic X2 GP-12 included)

Bottom fan
1x 120 mm (requires removal of HDD cage)

Dust filters
Top, front and bottom

Fixed velcro straps
Yes

Cable routing grommets
Yes

Captive thumbscrews
HDD, SSD and PSU brackets

Left side panel
Steel

Right side panel
Steel

Compatibility

Motherboard compatibility
ATX / mATX / Mini-ITX

Power supply type
ATX

Front radiator
Up to 360/280 mm

Top radiator
Up to 240 mm

Rear radiator
120 mm

Bottom radiator
120 mm (requires removal of HDD cage)

PSU max length
200 mm (165 mm with HDD cage and front fan)

GPU max length
341 mm (360 mm without front fan)

CPU cooler max height
169 mm

Cable routing space
17-28 mm

Radiator Support – Additional Details
Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.

Dimensions

Case dimensions (L x W x H)
424 x 210 x 475 mm

Case dimensions w/o feet/protrusions/screws
412 x 210 x 455 mm

Net weight
Solid: 7.7 kg TG: 8.1 kg

Package dimensions (L x W x H)
542 x 320 x 554 mm

Gross weight
Solid: 9.3 kg TG: 9.8 kg

Volume
39.4 Liters
