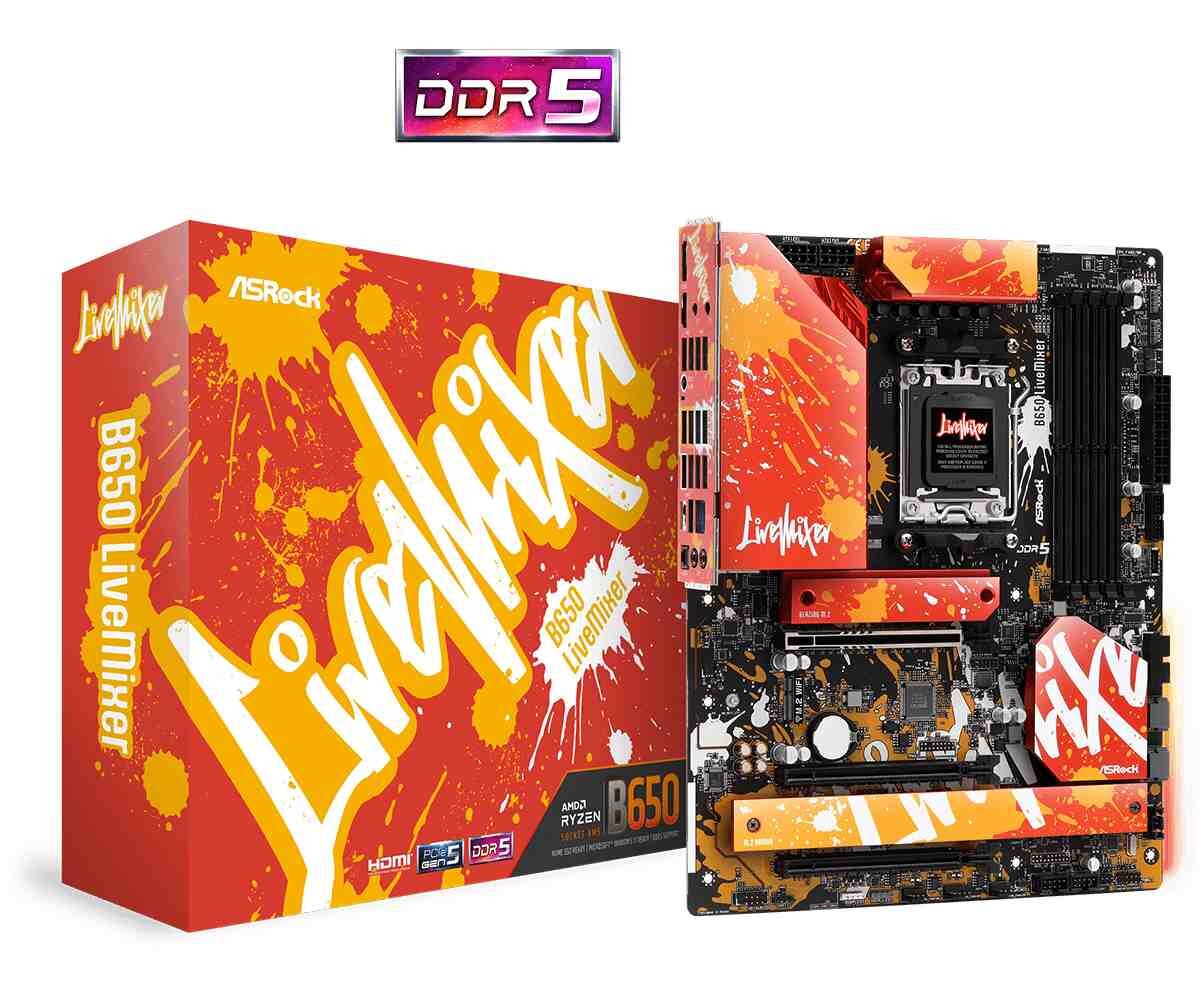

ASRock MB Sc AM5 B650 LiveMixer, AMD B650, 4xDDR5, 1xDP, 1xHDMI -

B650 LiveMixerSupports AMD Ryzen™ 7000 Series Processors14+2+1 Phase Power Design, SPS4 x DDR5 DIMMs, supports up to 6400+(OC)3 PCIe 4.0 x16, 1 M.2 Key-E for WiFiGraphics Output Options: 1 HDMI, 1 DisplayPort7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio1 Blazing M.2 (PCIe Gen5x4),2... číst celé

B650 LiveMixer

Supports AMD Ryzen™ 7000 Series Processors

14+2+1 Phase Power Design, SPS

4 x DDR5 DIMMs, supports up to 6400+(OC)

3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi

Graphics Output Options: 1 HDMI, 1 DisplayPort

7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

1 Blazing M.2 (PCIe Gen5x4),

2 Hyper M.2 (PCIe Gen4x4),

2 SATA3

1 USB 3.2 Gen2x2 Type-C (Front),

1 USB 3.2 Gen2 Type-C (Rear),

1 USB 3.2 Gen2 Type-A (Rear),

8 USB 3.2 Gen1 (4 Rear, 4 Front),

12 USB 2.0 (8 Rear, 4 Front)

Realtek 2.5G LAN

Unique Feature

Superb Productivity- PCIe Gen5 (M.2)- Dual Channel DDR5Rock-Solid Durability- 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor- Flexible Integrated I/O Shield- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCoreUltrafast Connectivity- 2.5G LAN- ASRock Lightning Gaming Ports EZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker

CPU

- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

Chipset

- AMD B650

Memory

- Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control

Slots

CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

*If M2_3 is occupied, PCIE3 will be disabled.Supports NVMe SSD as boot disks

Storage

CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 2 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disksSupports ASRock U.2 KitIf M2_3 is occupied, PCIE3 will be disabled.

RAID

- Supports RAID 0 and RAID 1 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10

Connector

- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin)- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

*Supports in total up to 12V/3A, 36W LED Strip

Support in total up to 5V/3A, 15W LED Strip

CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2/WP supports the fan power up to 2A (24W).

CHA_FAN1~4/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)- 4 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.)- 8 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
