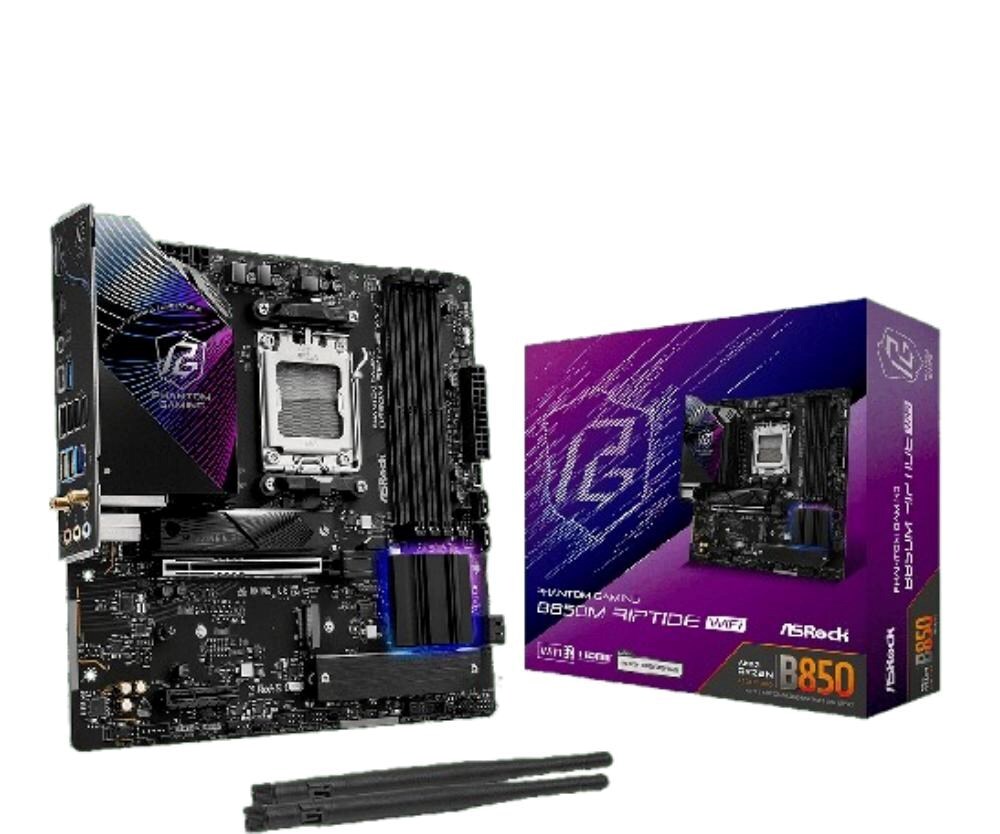

ASRock B850M Riptide WiFi

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Unique Feature

Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor- Flexible Integrated I/O Shield- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Gaming- 2.5G LAN, 802.11be Wi-Fi 7 ModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

- AMD B850

Memory

- Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control

Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be- Supports 2.4GHz/5GHz/6GHz frequency band- Supports 160MHz channel bandwidth with 6GHz frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.4- Supports MU-MIMO

Slots

CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 modeChipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) modeChipset:- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode- 4 x SATA3 6.0 Gb/s Connectors- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

CPU:- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))Chipset:- 1 x USB 3.2 Gen1 Type-C (Front)- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)- 8 x USB 2.0 (4 Rear, 4 Front)

Internal I/O

- 1 x SPI TPM Header- 1 x Thermistor Cable Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O

- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)- 2 x USB 3.2 Gen1 Ports- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Phantom Gaming LAN Software- ASRock Polychrome SYNCUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash

Accessories

- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Thermistor Cable- 2 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm- 2oz Copper PCB

OS

- Microsoft Windows 10 64-bit / 11 64-bit

OS

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
