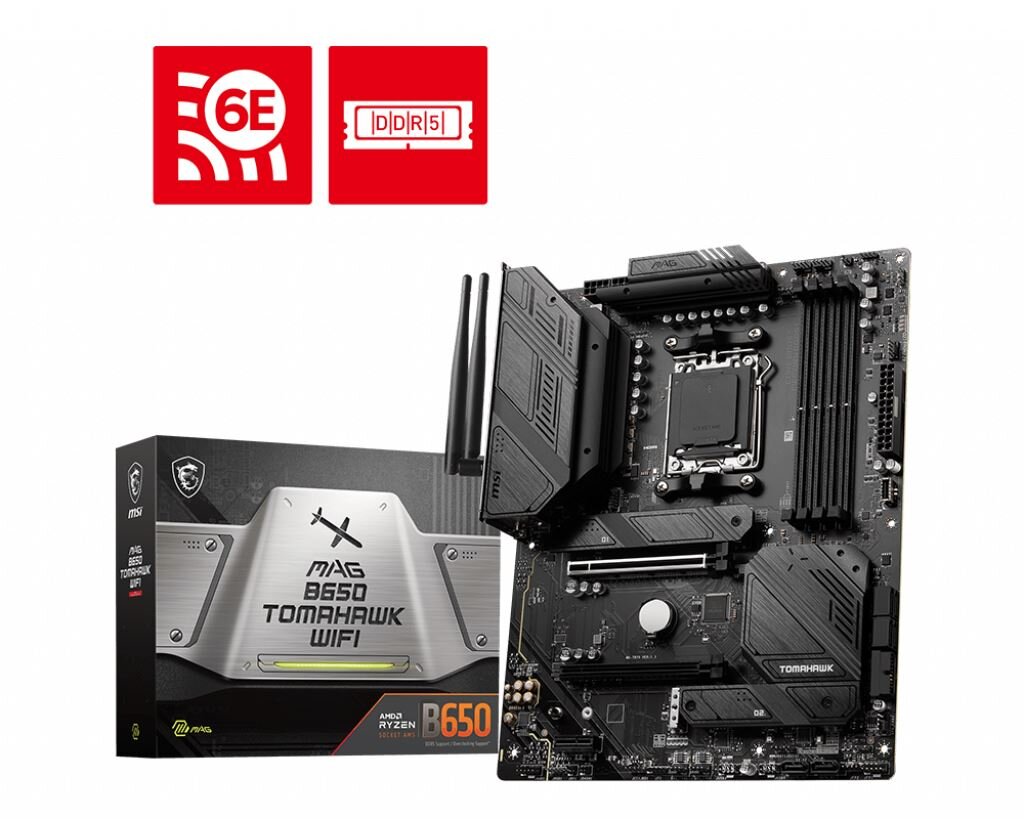

MAG B650 TOMAHAWK WIFI

Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, up to 7600+(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

CHIPSET

AMD B650

CPU SUPPORT

Supports AMD Ryzen™ 8000 / 7000 Series Desktop ProcessorsSocket AM5

MEMORY

4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS

1x HDMI™1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60HzSupport DP 1.4, maximum resolution of 8K 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slotSupport x16/ x41x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

3x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G port

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices SATA_A1_A2 do not support RAID function.

USB

2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek RTL8125B 2.5Gbps LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bandsSupports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3

"* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11."

AUDIO

Realtek ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort 1.42.5G LAN PortUSB 2.0 PortUSB 3.2 Gen 1 5Gbps Type-AWi-Fi / Bluetooth AntennaHD Audio ConnectorsFlash BIOS ButtonHDMI™ 2.1 PortUSB 3.2 Gen 2 10Gbps Type-AUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUT
