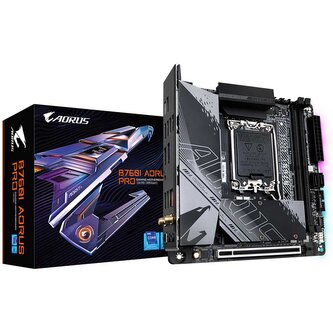

Gigabyte B760I AORUS PRO

• Supports Intel Core™ 14th/ 13th /12th processors


• Unparalleled Performance:Direct 8+1+1 Phases Digital VRM Solution


• Dual Channel DDR5:2DIMMs with XMP 3.0 Memory Module Support


• Next Generation Storage:2PCIe 4.0 x4 M.2 Connectors


• Advanced Thermal Design:Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate


• Fast Networks:Intel 2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity:Front USB3.2 Gen 1 USB-C, Rear USB-C 10Gb/s, DP, HDMI


• RGB FUSION:Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips


• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron ProcessorsL3 cache varies with CPU Please refer to "CPU Support List" for more information.

Chipset

Intel B760 Express Chipset

Memory

Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Graphics

Integrated Graphics Processor-Intel HD Graphics support:1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.31 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)

Expansion Slots

CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Storage

CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for SATA storage devices

Ethernet + Wireless Communication module

Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Intel Wi-Fi 6E AX211 (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateRealtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.)

USB

Chipset:1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panel

Audio

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out

Back Panel I/O Ports

1 x USB Type-C port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x DisplayPort1 x HDMI port1 x Q-Flash Plus button1 x RJ-45 port2 x SMA antenna connectors (2T2R)1 x optical S/PDIF Out connector2 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x reset jumper1 x Clear CMOS jumper1 x chassis intrusion header

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus

AccessoriesBundled Software

Norton Internet Security (OEM version)LAN bandwidth management software

Operating System

Windows 11, Windows 10 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
