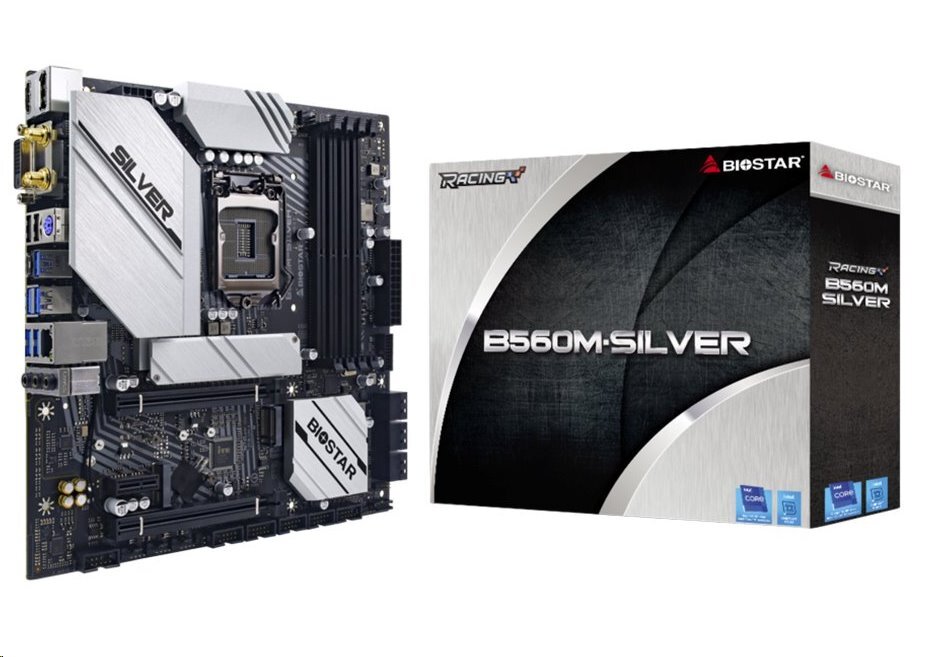

BIOSTAR B560M-SILVER, LGA 1200, Intel B560, 4xDDR4, HDMI/DVI-D/DP, 2xPCI-E x16, 1xPCI-E x1, 6xSATA, 2 -

Main Board Desktop - Processor Chipset: Intel B560 Supports Central Processor Unit: Intel 10th Gen Processors Intel 11th Gen Processors CPU Socket Standard: Socket 1200 CPU Maximum Quantity Supports: 1 Main Board Desktop - Memory Memory Type:... číst celé

Main Board Desktop - Processor
Chipset:	Intel B560
Supports Central Processor Unit:	Intel 10th Gen Processors Intel 11th Gen Processors
CPU Socket Standard:	Socket 1200
CPU Maximum Quantity Supports:	1
Main Board Desktop - Memory
Memory Type:	DDR4 SDRAM
Memory Form Factor:	DIMM 288-pin
Memory Speed:	2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity:	128 GB
Memory Slot Total Quantity:	4
Provides Error Checking Method:	non-ECC
Memory Features:	XMP
Controller
Integrated:	Storage Controller: SATA III-600 (6) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Support:	Wi-Fi Controller: 1 x M.2 (Key E)
Main Board Desktop - Audio Output
Audio Integrated:	yes
Device Location:	Integrated
Audio Chipset:	Realtek ALC1220
Audio Output Mode:	7.1 Channel Surround
Compliant Audio Standards:	High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:	yes
LAN Chipset:	Realtek RTL8125B
Data Link Protocol Supports:	Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps
Slot Provided
PCI Express 4.0 x16:	1
PCI Express 3.0 x16:	1
PCI Express 3.0 x1:	1
Interface Provided
Wi-Fi Antenna:	2
PS/2:	1
HDMI:	1 (HDMI (Type A))
DVI:	1 (DVI-D)
DisplayPort:	1
LAN:	1 (RJ-45)
Audio Interface:	3 (3.5-mm minijack)
USB 3.2 Gen 2 x2:	1 (USB 3.2 (type C))
USB 3.2 Gen 1:	3 (USB 3.2 (type A))
USB 2.0:	2 (USB 2.0 (type A))
USB 3.2 Gen 2:	2 (USB 3.2 (type A))
Main Board Desktop - Mainboard Features
Hardware Monitoring:	Chassis Fan Tachometer CPU Fan Tachometer CPU Temperature System Temperature System Voltage CPU Fan multi-speed control
Power Connectors Type:	24+8 pin
Mainboard Features:	Intel Optane Memory Ready
Main Board Desktop - Software
Supported Operating System:	Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Miscellaneous
Cable Included:	4 x SATA Data Cables
Included Accessories:	I/O Shield Quick Start Guide DVD
Main Board Desktop - Dimensions&Weight
Form Factor:	Micro ATX
Height (mm):	244 mm
Width (mm):	244 mm
