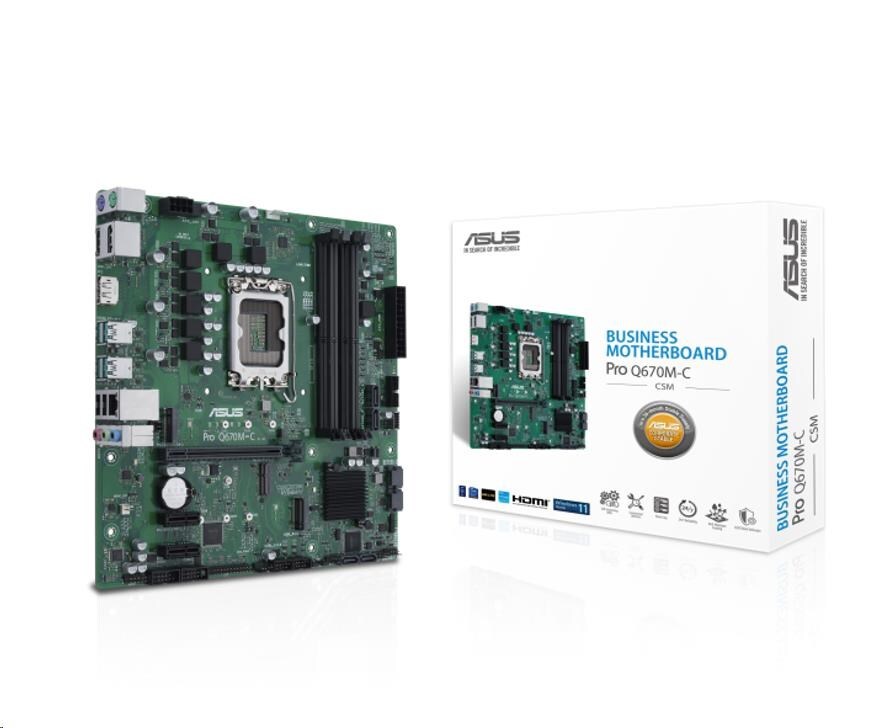

Pro Q670M-C-CSM

Micro-ATX Q670 business motherboard with Intel vPro support and enhanced security, reliability, manageability and serviceability

• Intel LGA 1700 socket: Ready for 14th and 13th Gen Intel Core™ processors


• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards


• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration


• Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs


• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments


• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance


• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

Supports 14th Gen Intel Core™ Processors

CPU

Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Q670 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)Optimem IIActual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x HDMI 2.02 x DisplayPort1 x HDMI Graphics specifications may vary between CPU types. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 4.0/3.0 x16 slotIntel Q670 Chipset2 x PCIe 3.0 x1 slots Please check PCIe bifurcation table in support site.

Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s portsIntel 14th & 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Intel 12th Gen processors support PCIe 4.0 x4 modeIntel Q670 ChipsetM.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet

1 x Intel 1Gb EthernetASUS LANGuard

Wireless & Bluetooth

Wi-Fi module is sold separately.

USB

Rear USB:Total 6 ports4 x USB 3.2 Gen 2 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB:Total 7 ports1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback "* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 3.2 Gen 2 ports (4 x Type-A)2x USB 2.0 ports (2 x Type-A)2 x DisplayPort1 x HDMI port3 x Audio jacks1 x Intel 1Gb Ethernet1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) port

Internal I/O Connectors

Fan and cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header2 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x DIS ME jumper1 x LPT header1 x Mono-out header(with Amp IC)1 x M.2 slot (Key E)1 x Speaker header1 x 10-1 System Panel header

Special Features

ASUS EZ DIY- Box HeadersBespoke Motherboard Design & Business Focused Features- ASUS Boot Defender- Q-LED Core- ASUS Self Recovering BIOS- ASUS Event Log- ASUS Commercial BIOS kit- Anti-Moisture- 24/7 Reliability- Overcurrent ProtectionTPM 2.0 IC onboard

Software Features

ASUS Exclusive SoftwareIT Management software supported- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM

Manageability

WOL by PME, PXE

Accessories

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw package1 x M.2 Key E screw packageInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

mATX Form Factor24.4 cm x 24.4 cm
