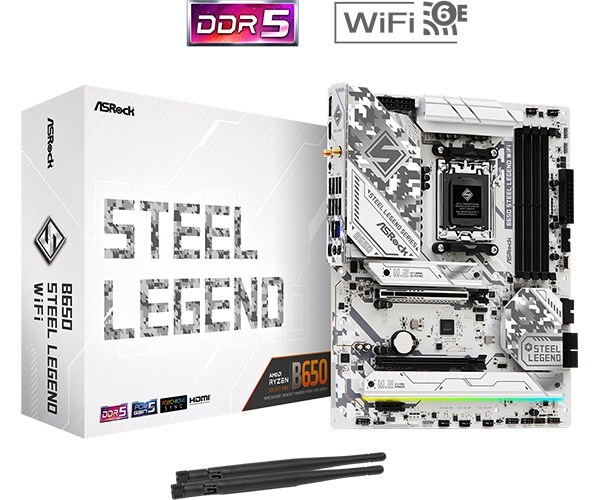

B650 Steel Legend WiFi

• Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors


• 14+2+1 Power Phase, 80A Dr.MOS for VCore


• 4 x DDR5 DIMMs, supports up to 7200+ (OC)


• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1


• Graphics Output Options: 1 HDMI, 1 DisplayPort


• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio


• 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)


• 1 USB 3.2 Gen2x2 Type-C (Rear)


• 1 USB 3.2 Gen1 Type-C (Front)


• 1 USB 3.2 Gen2 Type-A (Rear)


• 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)


• 8 USB 2.0 (4 Rear, 4 Front)


• Dragon 2.5G LAN


• 802.11axe WiFi 6E + Bluetooth


• Supports ASRock Auto Driver Installer, BIOS Flashback

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

CPU

- Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors

Chipset

- AMD B650

Memory

- Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)- Max. capacity of system memory: 192GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)- Individual PCB Layers for R/L Audio Channel- Impedance Sensing on Rear Out port- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control

Wireless LAN

- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.2 + High speed class II- Supports MU-MIMO

Expansion Slots

CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeChipset:- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode- 1 x PCIe 4.0 x1 Slot (PCIE3)- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode- 2 x SATA3 6.0 Gb/s ConnectorsASMedia ASM1061:- 2 x SATA3 6.0 Gb/s Connectors- Supports RAID 0 and RAID 1 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Supports NVMe SSD as boot disks If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode. Requires additional M.2 NVMe expansion cards to support RAID 10

USB

CPU:- 1 x USB 3.2 Gen2 Type-A (Rear)- 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset:- 1 x USB 3.2 Gen2x2 Type-C (Rear)- 1 x USB 3.2 Gen1 Type-C (Front)- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front)- 8 x USB 2.0 (4 Rear, 4 Front)

Internal Connector I/O

- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin)- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)- 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNCUEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant FlashThese utilities can be downloaded from ASRock Live Update & APP Shop.

Unique Feature

Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor- Flexible Integrated I/O Shield- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker

Accessories

- 1 x User Manual- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Form Factor

- ATX Form Factor: 30.5 cm x 24.4 cm- 8 Layer PCB
