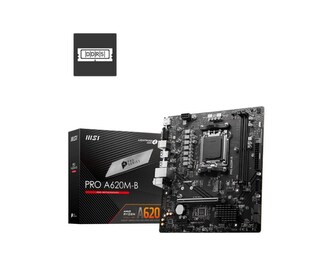

MSI PRO A620M-B

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors


• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)


• Core Boost : With premium layout and digital power design to support more cores and provide better performance


• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility


• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4x4 M.2


• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience


• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5

Memory

2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO

Onboard Graphics

1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec7.1-Channel High Definition Audio

Storage

1x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)

LAN

Realtek RTL8125BG 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

HDMI™VGAKeyboard/MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio connectorsUSB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM Factor

mATX215mmx243.84mm
