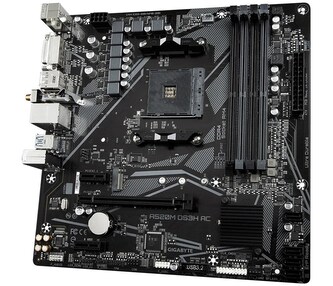

GIGABYTE A520M DS3H AC

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors


• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs


• 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs


• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector


• Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna


• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management


• HDMI, DVI-D, Display Ports for Multiple Display


• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips


• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU

1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors(Please refer "CPU Support List" for more information.)

Chipset

1. AMD A520

Memory

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory2. AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules4. Dual channel memory architecture5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules7. Support for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for up to 3 displays at the same timeMaximum shared memory of 16 GB

Audio

1. Realtek Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

1. Realtek GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module

Intel Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3)1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band2. BLUETOOTH 4.23. Support for 11ac wireless standardIntel Wireless-AC 9260 (For PCB rev. 1.1)1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band2. BLUETOOTH 5.13. Support for 11ac 160MHz wireless standardAzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4)1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band2. BLUETOOTH 5.03. Support for 11ac wireless standard(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset:1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)

Storage Interface

CPU:1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)Chipset:1. 4 x SATA 6Gb/s connectors2. Support for RAID 0, RAID 1, and RAID 10

USB

CPU:1. 4 x USB 3.2 Gen 1 ports on the back panelChipset:1. 2 x USB 3.2 Gen 1 ports available through the internal USB header2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 1 x CPU fan header4. 2 x system fan headers5. 1 x addressable LED strip header6. 1 x RGB LED strip header7. 1 x M.2 Socket 3 connector8. 4 x SATA 6Gb/s connectors9. 1 x front panel header10. 1 x front panel audio header11. 1 x USB 3.2 Gen 1 header12. 1 x USB 2.0/1.1 header13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)14. 1 x serial port header15. 1 x Clear CMOS jumper16. 1 x Q-Flash Plus button*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port2. 1 x DVI-D port3. 1 x DisplayPort4. 1 x HDMI port5. 2 x SMA antenna connectors (1T1R)6. 4 x USB 3.2 Gen 1 ports7. 2 x USB 2.0/1.1 ports8. 1 x RJ-45 port9. 3 x audio jacks

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. Voltage detection2. Temperature detection3. Fan speed detection4. Overheating warning5. Fan fail warning6. Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 128 Mbit flash2. Use of licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneRGB FusionSmart BackupSystem Information Viewer2. Support for Q-Flash Plus3. Support for Q-Flash

Bundled Software

1. Norton Internet Security (OEM version)2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit2. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm
