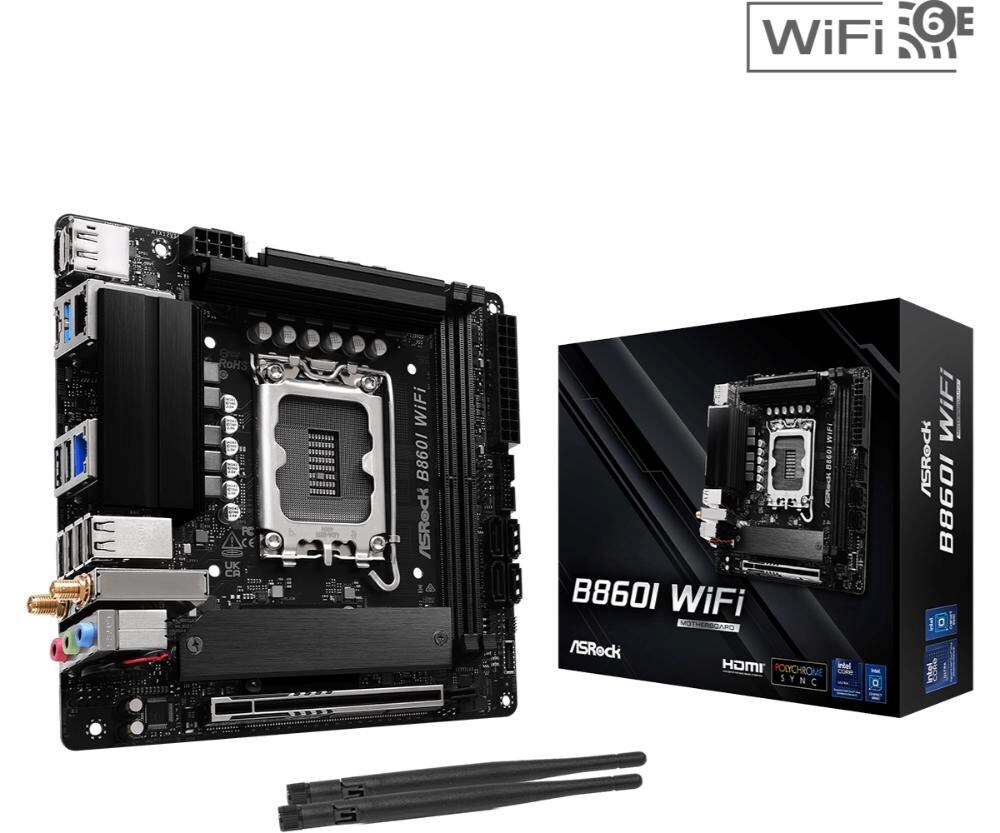

ASRock B860I WiFi

Built to deliver reliable performance with versatile features, perfect for daily tasks.

Unique Feature

Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 8+1+1+1+1 Power Phase, SPS for VCore+GT+VCCSAUltrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer

CPU

- Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology- Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)- Integrated NPU for dedicated AI acceleration

Chipset

- Intel B860

Memory

- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)*- Supports Clocked Unbuffered DIMM (CUDIMM)- Max. capacity of system memory: 128GB- Supports Intel Extreme Memory Profile (XMP) 3.0x*1DPC 1R Up to 8933+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel Xe LPG Graphics Architecture- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio

LAN

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)

Wireless LAN

- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3- Supports MU-MIMO*The Wi-Fi 6E module is supported by Microsoft Windows 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.A 6GHz compatible router is required for 6E functionality.

Slots

CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disks

Storage

CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors*Supports Intel Volume Management Device (VMD)Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

CPU:- 1 x USB 3.2 Gen2x2 Type-C (Rear)Chipset:- 1 x USB 3.2 Gen2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-A (Rear)- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)- 6 x USB 2.0 (4 Rear, 2 Front)*All USB ports support ESD Protection

Connector

- 1 x Addressable LED Header*- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)*Supports in total up to 5V/3A, 15W LED StripCPU_FAN and CHA_FAN1 support the fan power up to 2A (24W).AIO_PUMP supports the fan power up to 3A (36W).AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 1 x USB 3.2 Gen2 Type-A Port- 2 x USB 3.2 Gen1 Ports- 4 x USB 2.0 Ports- 2 x RJ-45 LAN Ports- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 2 x Screws for M.2 Sockets

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

OS

- Microsoft Windows 11 64-bit

Certifications

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
