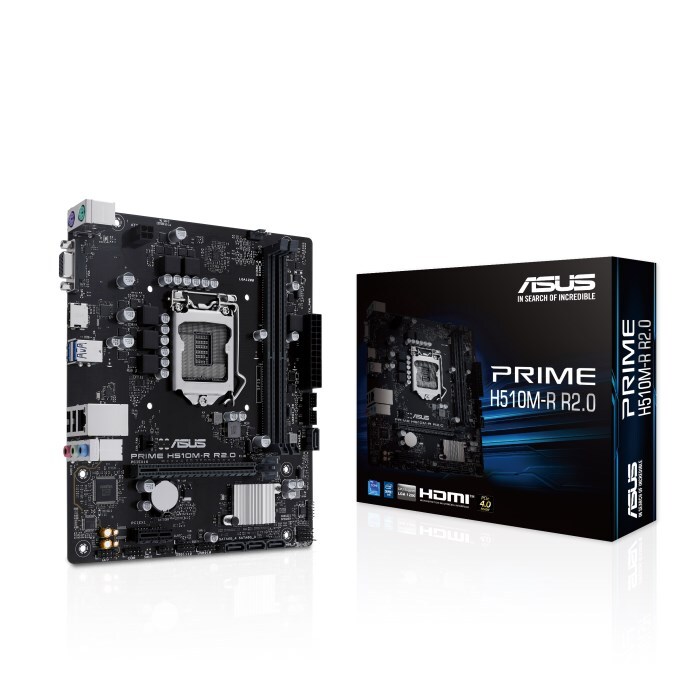

ASUS PRIME H510M-R R2.0

Intel H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Armoury Crate, 5X PROTECTION III

• Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors


• Ultrafast connectivity: PCIe 4.0, 1 Gb Ethernet and USB 3.2 Gen 1


• 5X Protection III: Multiple hardware safeguards for all-round protection

CPU

Intel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors*Supports up to Intel 65W CPU Supports Intel 14 nm CPUSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H470 Chipset

Memory

2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)* 10th Gen Intel Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.* 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Graphics

1 x VGA port1 x HDMI™ port Graphics specifications may vary between CPU types. Only Intel 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

LAN

1 x Realtek 1Gb Ethernet

Slots

Intel 11th& 10thGen Processors*1 x PCIe 4.0/3.0 x16 slot- Intel 11th Gen processors support PCIe 4.0 x16- Intel 10th Gen processors support PCIe 3.0 x16Intel H470 Chipset1 x PCIe 3.0 x1 slot

Storage

Total supports 4 x SATA 6Gb/s portsIntel H470 Chipset4 x SATA 6Gb/s ports

H/W Monitoring

Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.

USB

Rear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports

Connector

Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 4-pin +12V Power connectorStorage related4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header

Rear Panel I/O

2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port

Special Features

ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink design

Software Features

ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRM- EZ updateASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Accessories

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O ShieldDocumentation1 x User guide

Form Factor

mATX Form Factor; 21.8 cm x 18.8 cm
