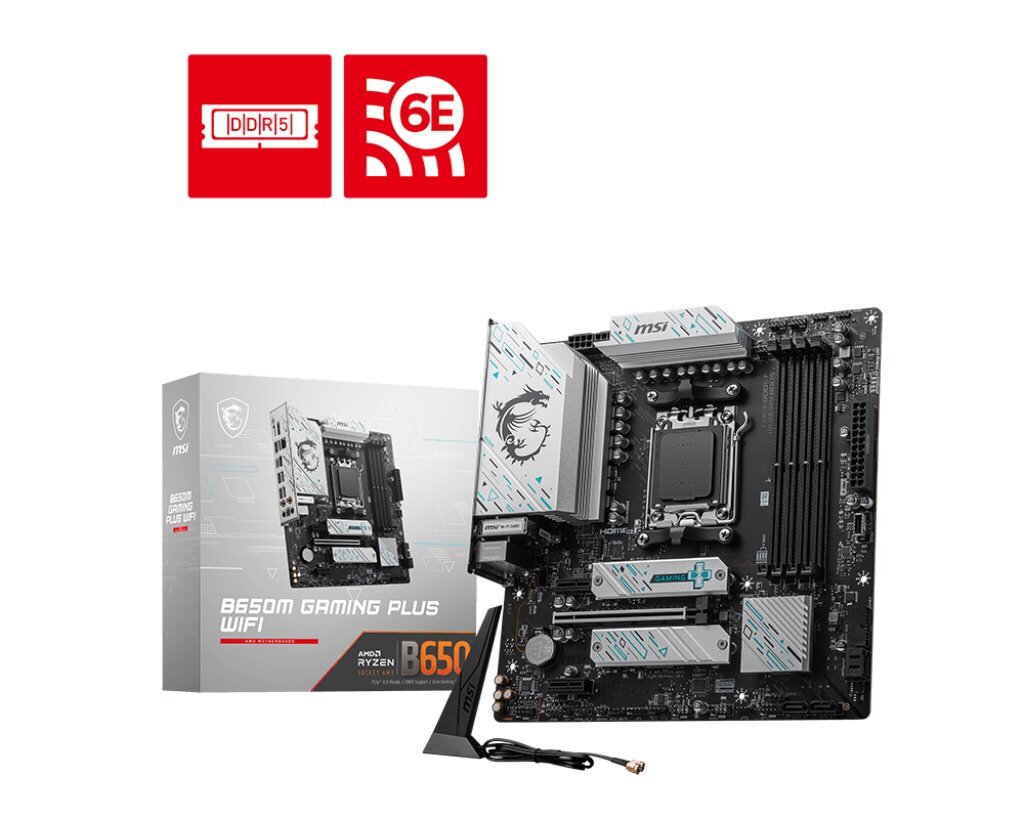

MSI B650M GAMING PLUS WIFI

B650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

• Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors


• Supports DDR5 Memory, up to 7200+(OC) MHz


• Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost


• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2


• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works


• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience


• High Quality PCB: 6-layer PCB made by 2oz thickened copper

CHIPSET

AMD B650

CPU

Supports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO™Max. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHz

ONBOARD GRAPHICS

1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slotSupports x16/x1/x42x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GSupports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)1x USB 3.2 Gen2 Type C (Front)

LAN + WIRELESS LAN

Realtek RTL8125BG 2.5Gbps LANAMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3 Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports

BACK PANEL I/O

1x DisplayPort1x 2.5G LAN1x USB 3.2 Gen 2 10Gbps (Type-A)4x USB 3.2 Gen 1 5Gbps (Type-A)2x Wi-Fi / Bluetooth1x Flash BIOS Button1x HDMI™2x USB 3.2 Gen 2 10Gbps (Type-A)1x USB 3.2 Gen 2 10Gbps (Type-C)3x Audio connectors

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

mATX243.84 x 243.84mm
