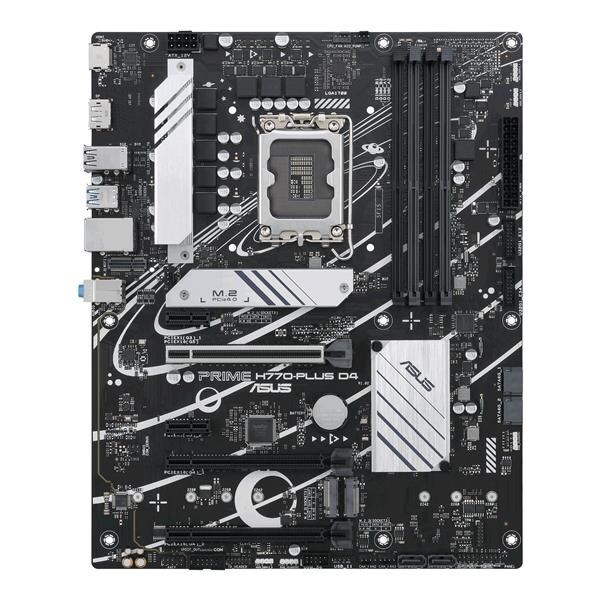

PRIME H770-PLUS D4

TECHNICAL SPECIFICATIONS

CPU
Intel Socket LGA1700 for 13^th Gen Intel Core™ Processors & 12^th Gen Intel Core™, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

• Refer to www.asus.com for CPU support list.

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel H770 Chipset

Memory
4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem

• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics
1 x DisplayPort

1 x HDMI port

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel 13^th & 12^th Gen Processors*

1 x PCIe 5.0 x16 slot

Intel H770 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

2 x PCIe 3.0 x1 slots

• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel H770 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet
1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.

USB
Rear USB (Total 8 ports)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Vertical M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors
Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x Aura RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4) header

Special Features
ASUS 5X PROTECTION III

• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core+

• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot

ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design

ASUS EZ DIY

• ProCool

Aura Sync

• Aura RGB headers

• Addressable Gen 2 headers

Software Features
ASUS Exclusive Software

Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving

AI Suite 3

• DIGI+ VRM

• PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

2 x Screw Packages for M.2 SSD

Documentation

1 x User guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
