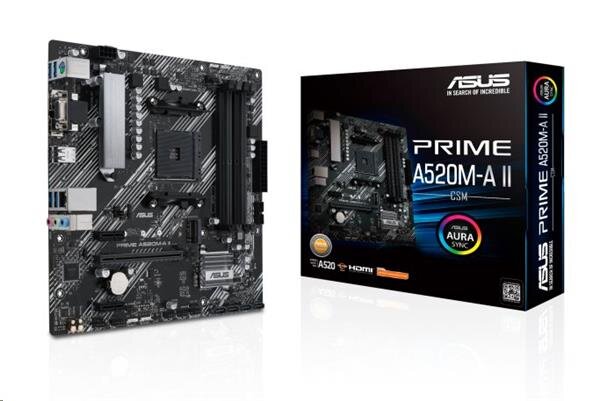

ASUS PRIME A520M-A II/CSM soc.AM4 A520 DDR4 mATX M.2 D-Sub HDMI DP -

Základná doska AMD A520 (Ryzen AM4) micro ATX s podporou M.2, DP, HDMI, D-Sub, SATA 6 Gb/s, USB 3.2 Gen 1 a osvetlenia Aura Sync RGB
Socket AMD AM4: Pripravené pre desktopové procesory série Ryzen™ 5000/ 4000 G/ 3000
Komplexné chladenie: Chladič VRM, chladič PCH a Fan Xpert 2+
Veľmi rýchle pripojenie: Podpora M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Aura Sync RGB: Integrované RGB headery a adresovateľné headery Gen 2 pre RGB LED pásky, ľahko synchronizovateľné s hardvérom podporujúcim Aura Sync
ASUS Control Center Express (ACCE) na jednoduchšiu správu koncových zariadení IT

ASUS Corporate Stable Model (CSM) je komerčný program navrhnutý na zaistenie stabilných a spoľahlivých základných dosiek.
Ponúka podporu až 36 mesiacov počas životného cyklu produktu a 6 mesiacov pred ukončením modelu, aby sa vaša organizácia mohla primerane pripraviť na prechod na nový produkt.
Každá zakúpená základná doska ASUS CSM sa dodáva s ASUS Control Center Express – softvérom pre správu IT serverovej úrovne.

Špecifikácia:

CPU
Procesory AMD Ryzen™ 3. generácie a procesory AMD Ryzen™ 3. generácie s grafickou kartou Radeon™
*Refer to www.asus.com for CPU support list.

Čipová súprava
Čipová súprava AMD A520

Memory
4x DIMM, Max 128GB DDR4
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics
* Graphics specifications may vary between CPU types

Rozširujúce sloty
1 PCIe 3.0 x16 (režim x16)
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots

Úložisko
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Support Raid 0, 1, 10

Ethernet
1 x Realtek 1Gb Ethernet

USB
Zadné USB:Celkovo 6 portov
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Predné USB:Celkovo 6 portov
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Zvuk
ALC887/897
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x D-Sub
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
