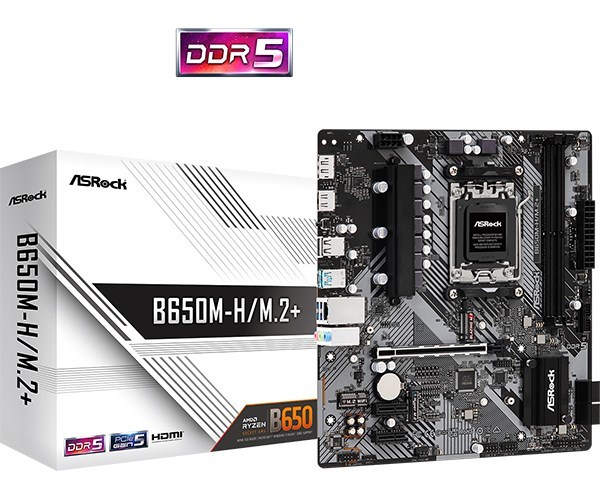

ASRock B650M-H/M.2+

• Supports AMD Socket AM5 Ryzen™ 7000 Series Processors


• 6+1+1 Power Phase, Dr.MOS


• Supports DDR5 6400+ MHz (OC)


• 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi


• Integrated AMD RDNA™ 2 Graphics *1


• Graphics Output Options: HDMI, DisplayPort


• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio


• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)


• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)


• Realtek Gigabit LAN


• Supports ASRock Auto Driver Installer, BIOS Flashback

CPU

- Supports AMD Socket AM5 RyzenTM CPU 7000 Series Processors

Chipset

- AMD B650

Memory

- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*- Max. capacity of system memory: 96GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/

Expansion Slot

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * Supports NVMe SSD as boot disks- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Graphics

Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio

LAN

- Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H

USB

- 1 x USB 3.2 Gen1 Type-C (Rear)- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection

Rear Panel I/O

- 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10

Internal I/O

- 1 x SPI TPM Header - 1 x Power LED and Speaker Header- 1 x CPU Fan Connector (4-pin)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* CPU_FAN1 supports the fan power up to 1A (12W). CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

BIOS Feature

- 256Mb AMI UEFI Legal BIOS with GUI support

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN* These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer- ASRock Instant Flash

OS

Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required

Accessories

1 x User Manual- 1 x I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets

Unique Feature

Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

Form Factor

- Micro ATX Form Factor: 24.4 cm x 22.6 cm
