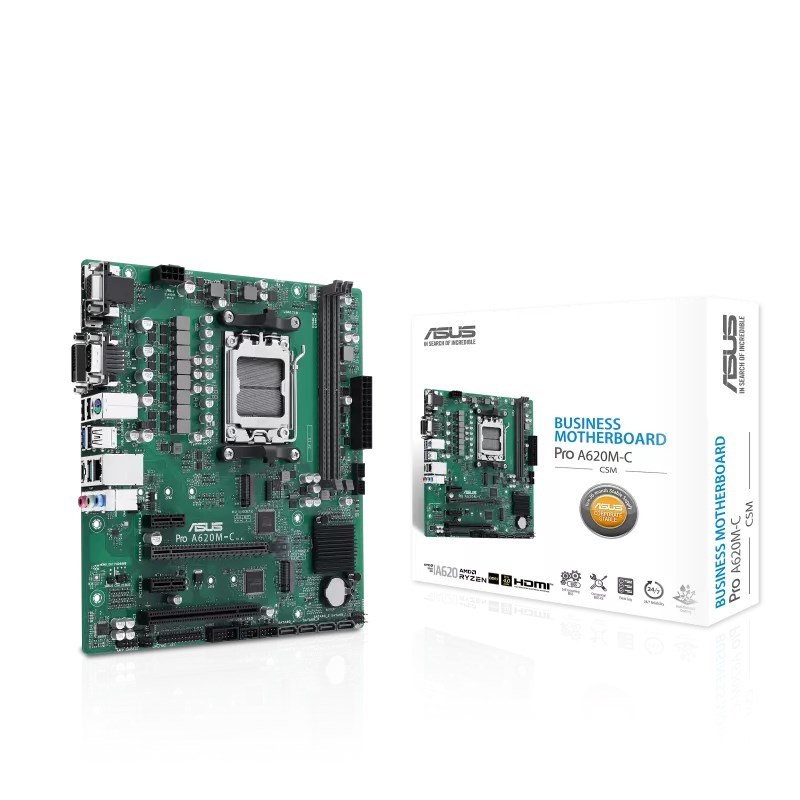

ASUS PRO A620M-C-CSM

AMD A620 Micro-ATX business motherboard with enhanced security, reliability, manageability and serviceability

• AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series Desktop processors


• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards


• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration


• Enhanced system security: A self-recovering BIOS


• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments


• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance


• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes


• Ultrafast connectivity: DDR5, M.2 PCIe 4.0 slots, USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 header

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*Supports up to AMD 120W CPU * Refer to www.asus.com for CPU support list.

Chipset

AMD A620 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort1 x VGA port 1 x DVI-D port1 x HDMI™ port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x16 mode) AMD A620 Chipset2 x PCIe 3.0 x1 slots1 x PCI slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD A620 Chipset4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 1Gb EthernetASUS LANGuard

USB

Rear USB (Total 6 ports)2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)1 x USB 3.2 Gen 1 (5G) port (1 x Type-A)3 x USB 2.0 ports (3 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

"Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback"* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C)1 x USB 3.2 Gen 1 (5G) port (1 x Type-A)3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort1 x VGA port1 x DVI-D port1 x HDMI™ port1 x Realtek 1Gb Ethernet port1 x COM port 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related 2 x M.2 slot (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x COM debug header1 x LPT header1 x SMBUS header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header

Special Features

ASUS Q-Design - Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- Box HeadersBespoke Motherboard Design & Business Focused Features- ASUS Self Recovering BIOS- ASUS Event Log- ASUS Commercial BIOS kit*- Anti-Moisture Coating- 24/7 Reliability- Overcurrent Protection * Please contact local FAE for commercial BIOS kit.

Software Features

ASUS Exclusive SoftwareIT Management software supported- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables2 x SATA 6Gb/s cables Miscellaneous1 x I/O Shield 2 x M.2 AnchorsDocumentation1 x ACC Express Activation Key Card1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor24.4 cm x 22.4 cm
