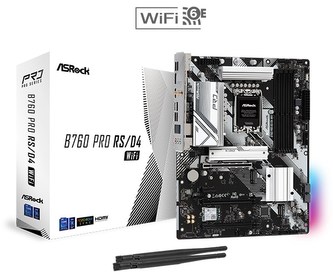

ASRock B760 PRO RS/D4 WiFi

• Supports 13th Gen & 12th Gen Intel CoreTM Processors (LGA1700)


• 7+1+1 Power Phase, Dr.MOS for VCore+GT


• Supports DDR4 5333MHz (OC)


• 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1,


• Graphics Output Options: HDMI, DisplayPort


• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio


• 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)


• 1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen1 Type-C (Rear), 7 USB 3.2 Gen1 Type-A (5 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front)

CPU

- Supports 13th Gen & 12th Gen Intel CoreTM Processors (LGA1700)- Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)

Chipset

- Intel B760

Memory

- Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB- Supports Intel Extreme Memory Profile (XMP) 2.0* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

Expansion Slot

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*- 1 x PCIe 3.0 x1 Slot (PCIE2)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)* Supports NVMe SSD as boot disks- Supports AMD CrossFireTM

Graphics

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Intel Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio

LAN + Wireless LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control- 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- Supports Dual-Band 2x2 with extended 6GHz band* support * Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.* A 6GHz compatible router is required for 6E functionality.- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II- Supports MU-MIMO

USB

1 x USB 3.2 Gen2 Type-C (Front)- 1 x USB 3.2 Gen1 Type-C (Rear)- 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front)- 4 x USB 2.0 (2 Rear, 2 Front)* All USB ports support ESD Protection

Rear Panel I/O

- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port - 5 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors* Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Internal I/O

- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) * Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

BIOS Feature

- 128Mb AMI UEFI Legal BIOS with GUI support

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC* These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode- ASRock Full HD UEFI - ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer

OS

Microsoft Windows 10 64-bit / 11 64-bit

Certifications

FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Accessories

- 1 x User Manual- 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket

Unique Feature

Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield - ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
