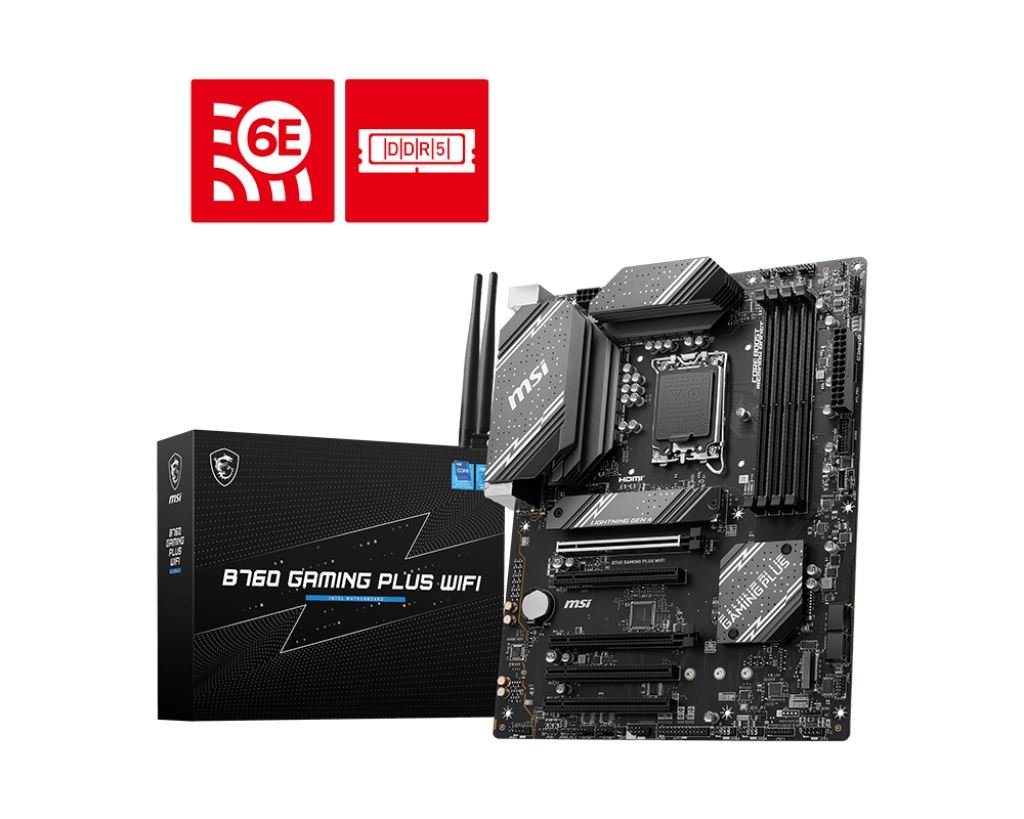

MSI B760 GAMING PLUS WIFI

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

CHIPSET

INTEL B760

CPU SUPPORT

Supports 12th/13th Gen Intel Core™ Processors, Pentium Gold and Celeron ProcessorsLGA 1700

MEMORY

4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory

ONBOARD GRAPHICS

1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen1 Type C (Front)2x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)

LAN

Realtek RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH

Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec7.1-Channel High Definition AudioSupports S/PDIF output

INTERNAL I/O

1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Printer Port (JLPT)1x Com Port (JCOM)1x TBT connector (JTBT, supports RTD3)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen1 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

1x Keyboard / Mouse1x DisplayPort1x 2.5G LAN4x USB 2.0Wi-Fi / Bluetooth5x Audio Connectors1x HDMI™2x USB 3.2 Gen 2 10Gbps (Type-A)1x USB 3.2 Gen 2 10Gbps (Type-C)S/PDIF-OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION (W × L)

ATX 243.84mmx304.8mm
