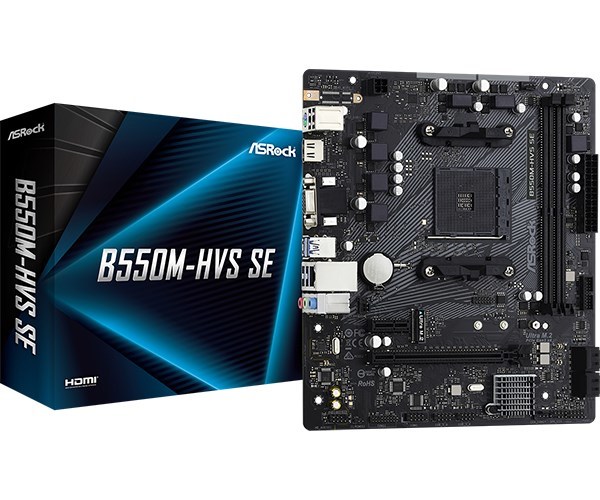

ASRock B550M-HVS SE

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*


• 6 Phase Power Design


• Supports DDR4 4733+ (OC)


• 1 PCIe 3.0 x16, 1 PCIe 3.0 x1


• Graphics Output Options: D-Sub, HDMI


• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)


• 4 SATA3, 1 Ultra M.2 (Gen3 x4 & SATA3)


• 6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)


• Realtek Gigabit LAN

CPU

- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Not compatible with AMD Athlon™ Processors.- 6 Power Phase design

Chipset

- AMD PRO565 / B550

Memory

- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC)/4533(OC)/ 4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/ 3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/ 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/4533(OC)/ 4466(OC)/4400(OC)/4333(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/ 4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/ 2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC)/4666(OC)/ 4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/ 4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/ 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/4666(OC)/ 4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/ 4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/ 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC)/3200(OC)/ 2933/2667/2400/2133 non-ECC, un-buffered memory For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)- Max. capacity of system memory: 64GB- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots

Expansion Slot

CPU: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode Supports NVMe SSD as boot disks Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)

Graphics

- Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU Actual support may vary by CPU- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.* The Max shared memory 16GB requires 32GB system memory installed.- Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 Port* Picasso supports HDCP 2.2 with HDMI 2.0 Port- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port- Supports Microsoft PlayReady

Audio

- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN - Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port- 1 x HDMI Port- 2 x USB 2.0 Ports (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

CPU: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: - 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Internal I/O

- 1 x SPI TPM Header - 1 x COM Port Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. * CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.- 1 x 24 pin ATX Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

BIOS Feature

- 128Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN* These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock Instant Flash

OS

Microsoft Windows 10 64-bit / 11 64-bit

Certifications

FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Accessories

- 1 x I/O Shield - 1 x User Manual- 2 x SATA Data Cables- 1 x Screw for M.2 Socket

Unique Feature

SRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop

Form Factor

Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm- Solid Capacitor design
