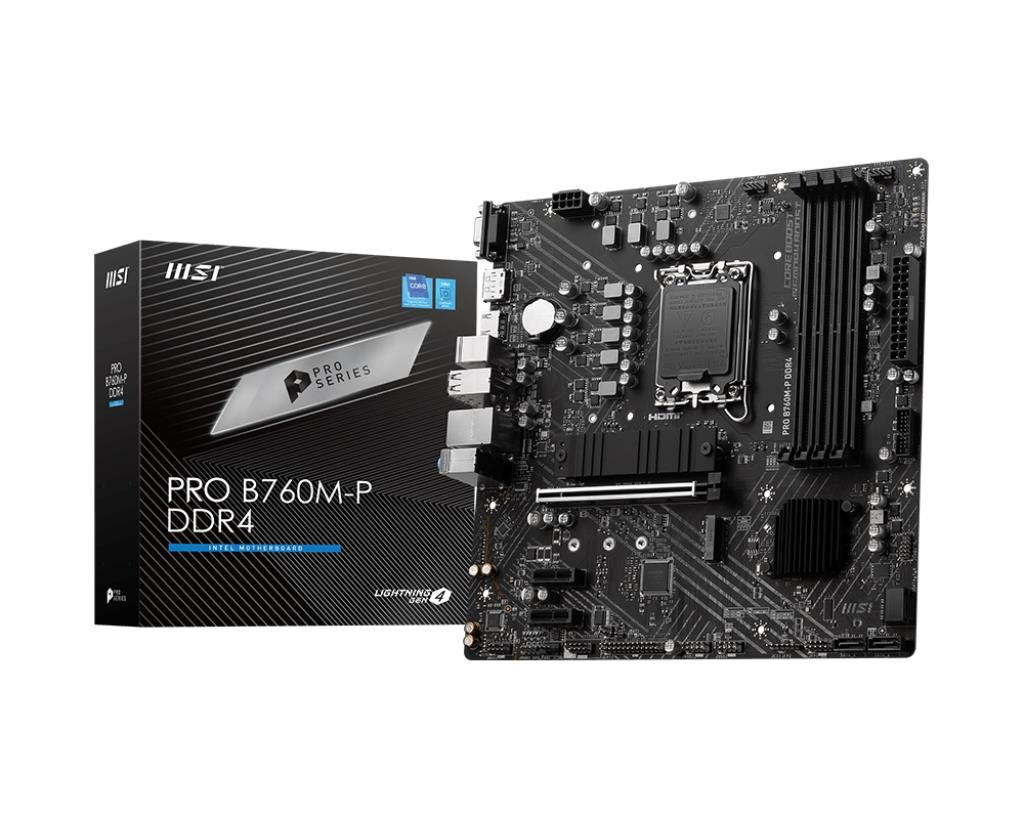

MSI PRO B760M-P DDR4

• Supports 12th/13th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket


• Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)


• Core Boost : With premium layout and digital power design to support more cores and provide better performance


• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility


• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr


• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience


• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

CPU

Supports 12th/13th Gen Intel Core™ Processors, Pentium Gold and Celeron ProcessorsLGA 1700

Chipset

INTEL B760

Memory

4x DDR4, Maximum Memory Capacity 128GBMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 4800+ MHz• 1DPC 2R Max speed up to 4600+ MHz• 2DPC 1R Max speed up to 4400+ MHz• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)

Graphics

1x HDMI™Support HDMI™ 1.4, maximum resolution of 4K 30Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Storage

2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Ethernet

Realtek RTL8111H Gigabit LAN

USB

4x USB 2.0 (Rear)4x USB 2.0 (Front)1x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type C (Rear)

Audio

Realtek ALC897 Codec7.1-Channel High Definition Audio

Back Panel I/O Ports

1x VGA1x DisplayPort1x HDMI™2x Keyboard / Mouse4x USB 2.01x LAN port3x Audio Connectors1x USB 3.2 Gen 1 5Gbps (Type-A)1x USB 3.2 Gen 2 10Gbps (Type-C)

Internal I/O Ports

1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Printer Port (JLPT)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX243.84 x 243.84 mm
