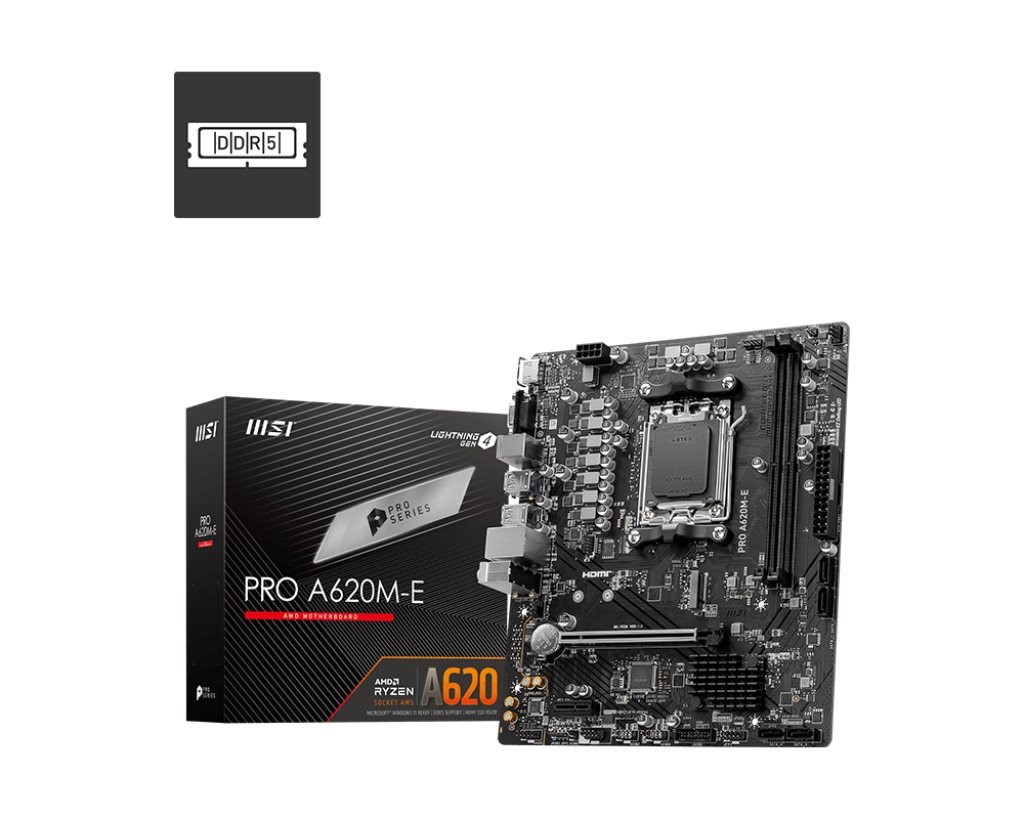

MSI PRO A620M-E

• Supports AMD Ryzen™ 7000 Series Desktop Processors


• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)


• Core Boost : With premium layout and digital power design to support more cores and provide better performance


• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility


• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2


• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience


• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

CPU

Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5

Chipset

AMD A620

Memory

2x DDR5, Maximum Memory Capacity 96GBMemory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6000+ MHz• 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO

Graphics

1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

1x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Ethernet

Realtek RTL8111H Gigabit LAN

USB

2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)

Audio

Realtek ALC897 Codec7.1-Channel High Definition Audio

Internal I/O Ports

1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports

Back Panel I/O Ports

1x HDMI™1x VGA2x Keyboard/Mouse4x USB 3.2 Gen 1 5Gbps (Type-A)1x LAN port3x Audio connectors2x USB 2.0

LED FEATURE

4x EZ Debug LED

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX211mmx243.84mm
