MSI MB Sc LGA1700 PRO B760-P DDR4 II, Intel B760, 4xDDR4, 1xDP, 1xHDMI -

MSI PRO B760-P DDR4 IIPRO B760-P DDR4 II is designed with tons of flexible tools with DDR4 memory version.The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who... číst celé

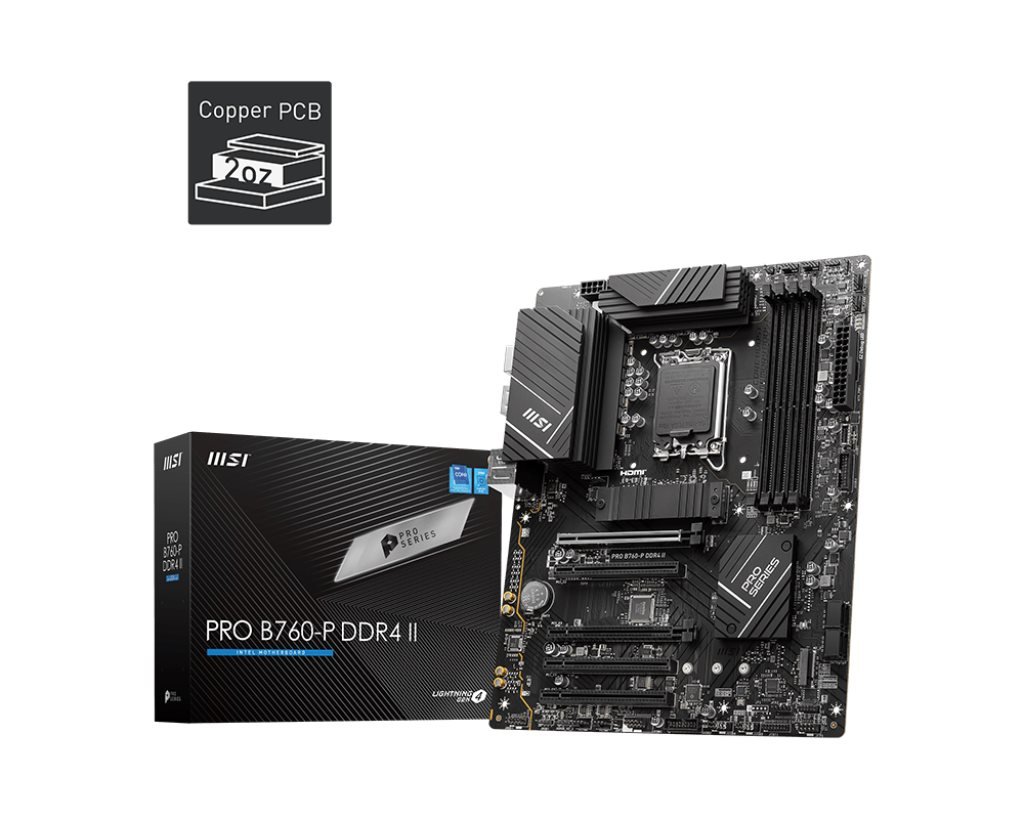

MSI PRO B760-P DDR4 II

PRO B760-P DDR4 II is designed with tons of flexible tools with DDR4 memory version.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

CPU

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron ProcessorsLGA 1700

CHIPSET

INTEL B760

MEMORY

4x DDR4, Maximum Memory Capacity 128GBMemory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 5333+ MHz• 1DPC 2R Max speed up to 4800+ MHz• 2DPC 1R Max speed up to 4400+ MHz• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices4x SATA 6GSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen1 Type C (Front)1x USB 3.2 Gen2 Type C (Rear)

LAN

Realtek RTL8125BG 2.5G LAN

AUDIO

Realtek ALC897 Codec7.1-Channel High Definition AudioSupports S/PDIF output

INTERNAL I/O

1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x TBT connector (JTBT, supports RTD3)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen1 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

1x DisplayPort1x 2.5G LAN2x USB 2.05x Audio Connectors1x HDMI™2x USB 3.2 Gen 1 5Gbps (Type-A)1x USB 3.2 Gen 2 10Gbps (Type-C)1x S/PDIF-OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

ATX243.84 x 304.8 mm
