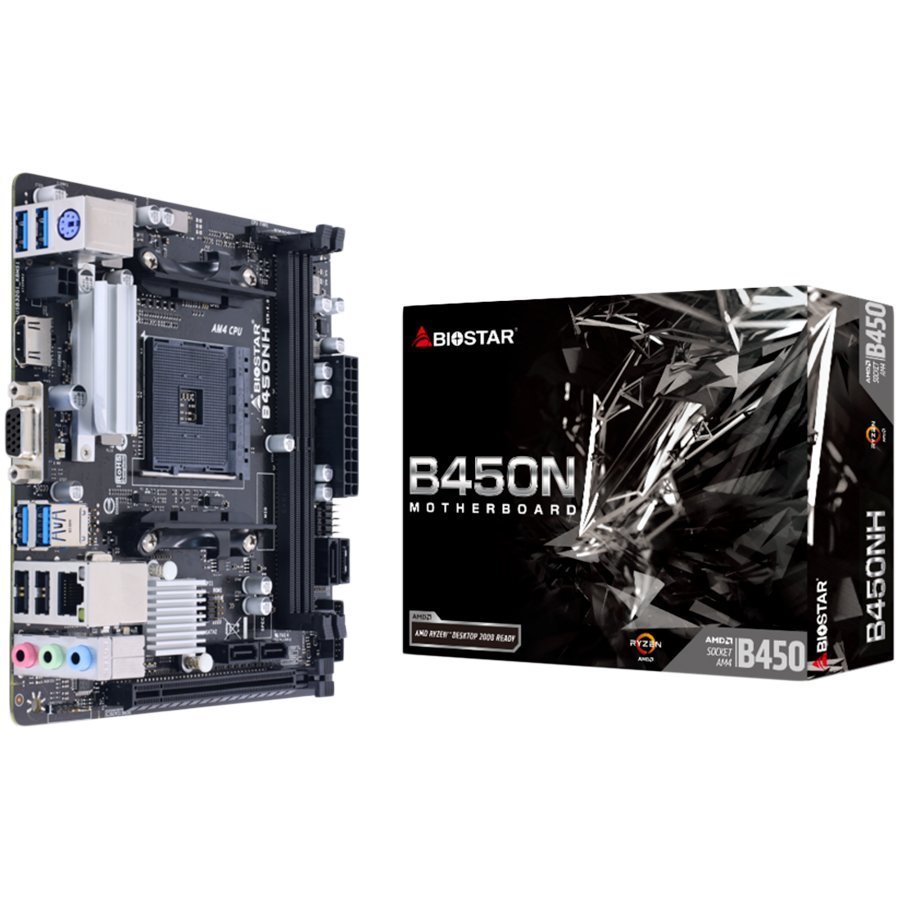

BIOSTAR Socket AM4; AMD B450; 2x DDR4; PCI-e 3.0 x 16; 1x M.2, 4x SATA III; Gbe LAN; Audio; USB; miniITX -

Main Board Desktop - Processor Chipset: AMD B450 Supports Central Processor Unit: AMD Athlon AMD Ryzen Series 2nd Generation AMD Ryzen Series 1st Generation AMD Ryzen Series 3rd Generation CPU Socket Standard: Socket AM4 CPU Maximum Quantity Supports: 1... číst celé

Main Board Desktop - Processor
Chipset:	AMD B450
Supports Central Processor Unit:	AMD Athlon AMD Ryzen Series 2nd Generation AMD Ryzen Series 1st Generation AMD Ryzen Series 3rd Generation
CPU Socket Standard:	Socket AM4
CPU Maximum Quantity Supports:	1
Main Board Desktop - Memory
Memory Type:	DDR4 SDRAM
Memory Form Factor:	DIMM 288-pin
Memory Speed:	1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300)
Maximum Installable System Memory Storage Capacity:	64 GB
Memory Slot Total Quantity:	2
Provides Error Checking Method:	non-ECC
Memory Features:	Two DDR Channels
Controller
Integrated:	Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Storage Controller: PCIe/SATA (1 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated:	yes
Device Location:	Integrated
Audio Chipset:	Realtek ALC887
Audio Output Mode:	7.1 Channel Surround
Compliant Audio Standards:	High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:	yes
LAN Chipset:	Realtek RTL8111H
Data Link Protocol Supports:	Gigabit Ethernet/Fast Ethernet/Ethernet
Slot Provided
PCI Express 3.0 x16:	1
Interface Provided
PS/2:	1
VGA:	1 (15-pin D-sub)
HDMI:	1 (HDMI (Type A))
USB 3.2 Gen 1:	4 (USB 3.2 (type A))
USB 2.0:	2 (USB 2.0 (type A))
LAN:	1 (RJ-45)
Audio Interface:	3 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
Hardware Monitoring:	CPU Fan Tachometer CPU Temperature CPU Voltage System Temperature CPU Fan multi-speed control
Power Connectors Type:	24+4 pin
Main Board Desktop - Software
Supported Operating System:	Windows 7 Windows 10
Miscellaneous
Cable Included:	2 x SATA cables
Included Accessories:	I/O Shield Quick Start Guide Driver CD
Main Board Desktop - Dimensions&Weight
Form Factor:	Mini-ITX
Width (mm):	170 mm
Depth (mm):	170 mm
