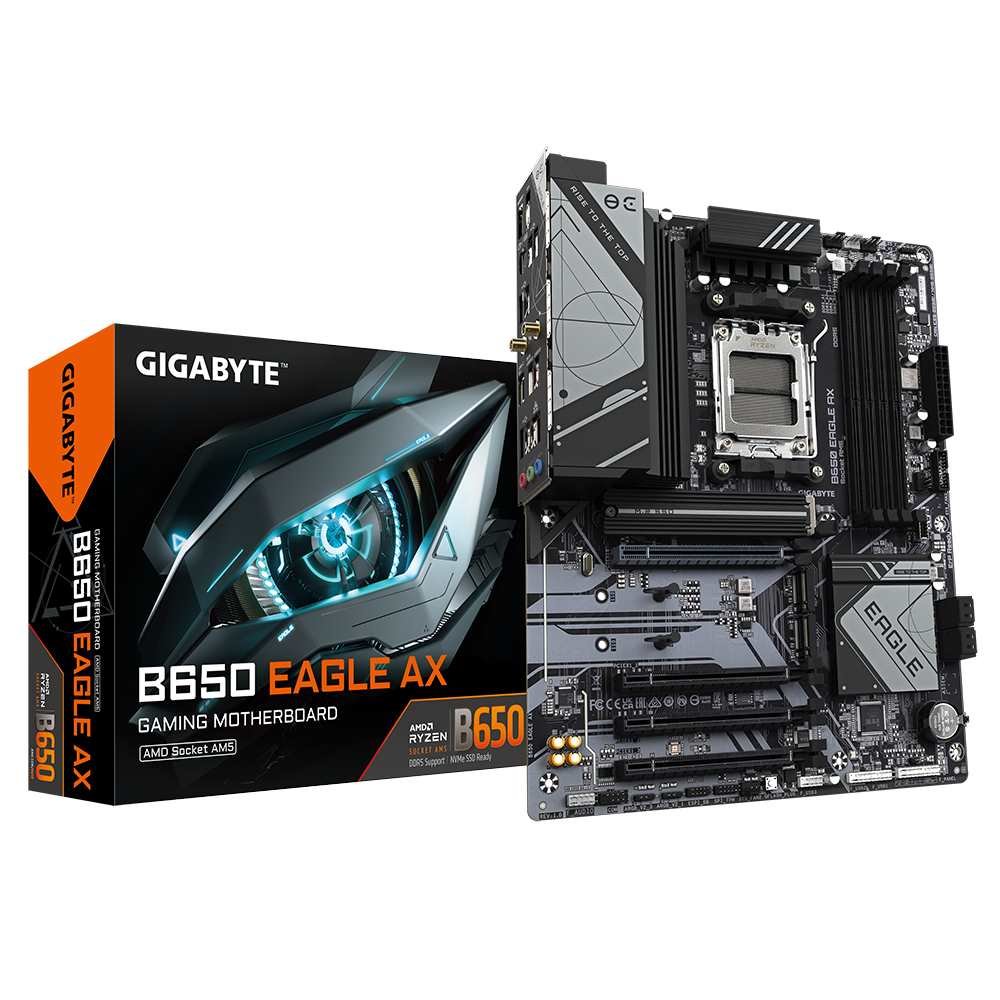

GIGABYTE B650 EAGLE AX

• AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors


• Unparalleled Performance:12+2+2 Phases Digital VRM Solution


• Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support


• SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors


• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance


• EZ-Latch:PCIe x16 Slot with Quick Release Design


• Fast Networks:Wi-Fi 6E 802.11ax & GbE LAN


• Extended Connectivity:DP, HDMI, Rear USB 10Gb/s


• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

AMD Socket AM5, support for:AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B650

Memory

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and ExtremeMemory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory SupportList" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor:- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)

Audio

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. Toconfigure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* For optimum performance, if only one PCI Express graphics card is to be installed,be sure to install it in the PCIEX16 slot.Chipset:- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSDsupport) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDsupport) (M2P_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDsupport) (M2C_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 supportCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through theinternal USB header- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available throughthe internal USB header)Chipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header2 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header3 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x Q-Flash Plus button1 x serial port header j1 x Clear CMOS jumper

Back Panel Connectors

1 x DisplayPort1 x HDMI port1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)1 x USB Type-C port, with USB 3.2 Gen 1 support2 x USB 3.2 Gen 2 Type-A ports (red)6 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

BIOS

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version)LAN bandwidth management software

Operating System

Support for Windows 11 64-bitSupport for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
