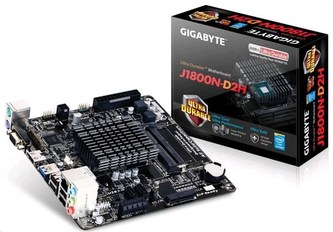

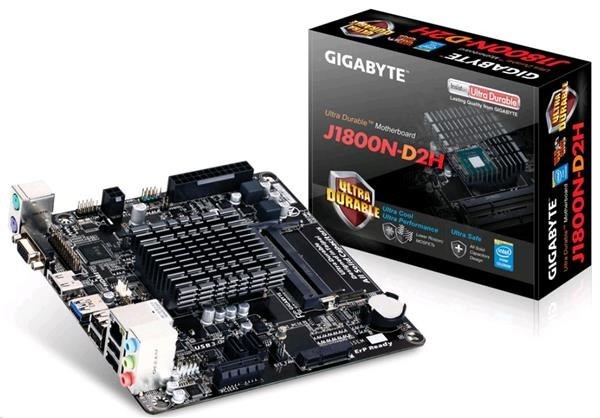

GIGABYTE MB J1800N-D2H, Dual-core Celeron® J1800 SoC (2.41 GHz), Intel NM10, 2xDDR3, VGA, Mini-ITX -

CPUBuilt in with an Intel Dual-Core Celeron J1800 SoC (2.41 GHz)* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.1 MB CacheMemory2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory If only one DDR3/-L memory module is to be... číst celé

CPU	Built in with an Intel Dual-Core Celeron J1800 SoC (2.41 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache
Memory	2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x HDMI port, supporting a maximum resolution of 1920x1080
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x1 slot 1 x Mini PCI Express x1 slot This socket does not support USB Bluetooth signals. (The PCI Express x1 slots conform to PCI Express 2.0 standard.) (For Mini-PCIE card/no mSATA card)
Storage Interface	SoC: 2 x SATA 3Gb/s connectors
USB	SoC: 1 x USB 3.0/2.0 port on the back panel SoC + GL850S USB 2.0 Hub: 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 3Gb/s connectors 1 x USB 2.0/1.1 header 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x debug card header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 1 x USB 3.0/2.0 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for @BIOS Support for Xpress Install Support for APP Center Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. Support for ON/OFF Charge
Bundle Software	Norton Internet Security (OEM version) Intel Smart Connect Technology
Operating System	Support for Windows 8.1/8 32-bit/64-bit Support for Windows 7 64-bit To support Windows 7 64-bit, please update the latest BIOS and drivers.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
