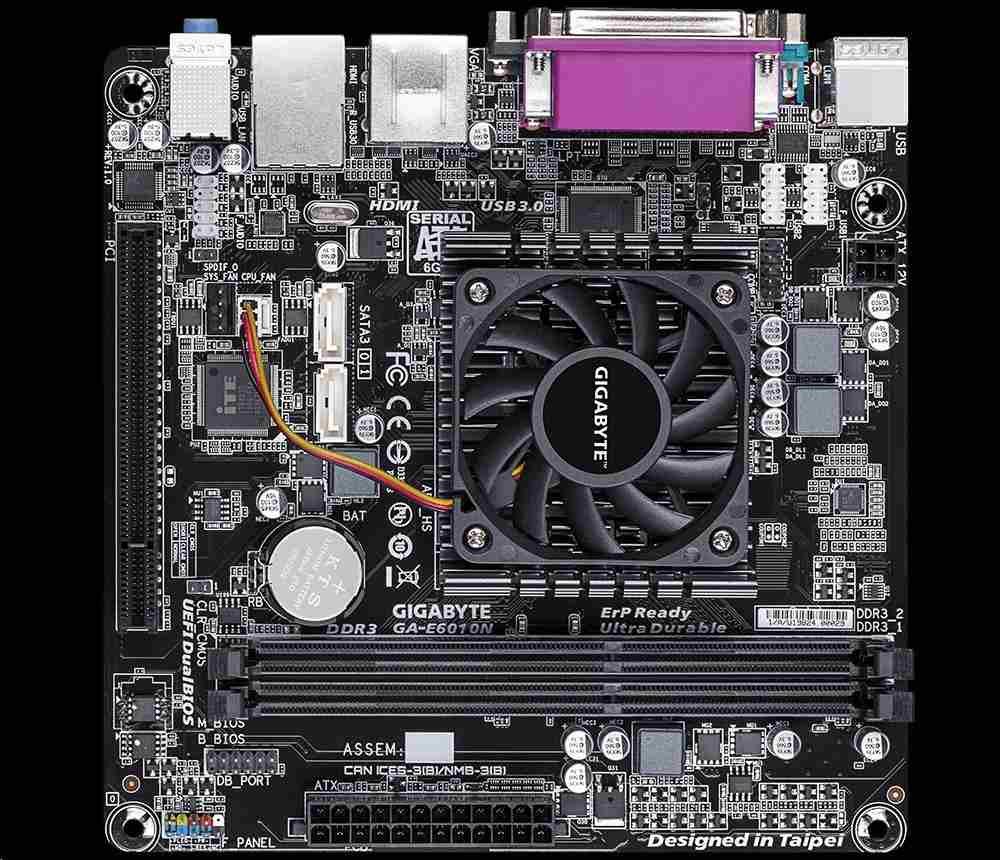

GIGABYTE MB GA-E6010N, AMD APU, 2xDDR3, VGA, Mini-ITX -

GA-E6010N (rev. 1.0)Built-in AMD E1-6010 Dual-Core APU with Radeon™ R2 Graphics SoCSingle Channel Non-ECC Unbuffered DDR3, 2 DIMMsOnboard USB 3.1 Gen1 Ports and PCI Interface to Improve Expansion PracticabilityHDMI, D-sub Ports for Multiple DisplayRealtek Gigabit LAN with High ESD ProtectionAll... číst celé

GA-E6010N (rev. 1.0)

Built-in AMD E1-6010 Dual-Core APU with Radeon™ R2 Graphics SoC

Single Channel Non-ECC Unbuffered DDR3, 2 DIMMs

Onboard USB 3.1 Gen1 Ports and PCI Interface to Improve Expansion Practicability

HDMI, D-sub Ports for Multiple Display

Realtek Gigabit LAN with High ESD Protection

All Solid Capacitors with Humidity Protection New Glass Fabric PCB design

GIGABYTE™ UEFI DualBIOS™ Technology

TECHNICAL SPECIFICATIONS

APU	Built in an AMD E1-6010 (1.35 GHz) APU with Radeon™ R2 graphics SoC Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2MB L2 cache
Memory	2 x DDR3 DIMM sockets supporting up to 32 GB of system memory The maximum 32 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. Support for DDR3 1333/1066 MHz memory modules (Please refer "CPU Support List" for more information.)
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096x2160 Support for HDMI 1.4a version. Maximum shared memory of 2 GB
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
LAN	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots	1 x PCI slot
Storage Interface	Integrated in the SoC: 2 x SATA 6Gb/s connectors
USB	Integrated in the SoC: 2 x USB 3.1 Gen 1 ports on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for @BIOS Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 10 64-bit Support for Windows 7 64-bit Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
