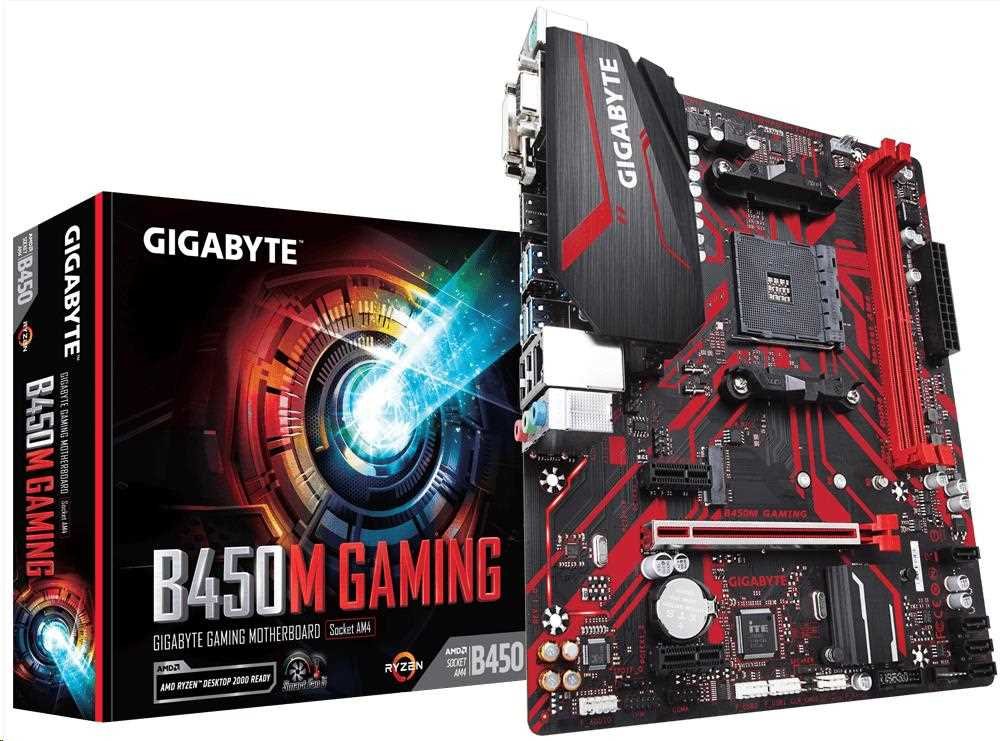

GIGABYTE MB Sc AM4 B450M GAMING, AMD B450, 2xDDR4, VGA, mATX -

B450M GAMING (rev. 1.0) AMD B450 Gaming Motherboard with Hybrid Digital PWM, GIGABYTE Gaming LAN with Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistors Design Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™... číst celé

B450M GAMING (rev. 1.0)

AMD B450 Gaming Motherboard with Hybrid Digital PWM, GIGABYTE Gaming LAN with Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistors Design

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
HDMI, DVI-D, D-sub Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB Fusion supports RGB LED Strips in 7-Colors
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
APP Center Including EasyTune™ and Cloud Station™ Utilities

TECHNICAL SPECIFICATIONS

CPU	AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B450
Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU. Maximum shared memory of 2 GB
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
USB	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Bundle Software	Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 20.5cm
Note	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
