1. AMD Ryzen™ 2nd Generation processors


2. AMD Ryzen™ with Radeon™ Vega Graphics processors


3. AMD Ryzen™ 1st Generation processors

(Please refer "CPU Support List" for more information.)

1. AMD B450

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory


2. Dual channel memory architecture


3. Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules


4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)


5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


6. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   The DVI-D port does not support D-Sub connection by adapter.


2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   Support for HDMI 2.0 version and HDCP 2.2.
   Actual support may vary by CPU.

1. Realtek ALC892 codec


2. High Definition Audio


3. 2/4/5.1/7.1-channel


4. Support for S/PDIF Out

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   Actual support may vary by CPU.
   For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)


2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)


3. 1 x PCI Express x1 slot
   (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)


2. 6 x SATA 6Gb/s connectors


3. Support for RAID 0, RAID 1, and RAID 10
   Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

1. Realtek GbE LAN chip (10/100/1000 Mbit)

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel


2. 2 x USB 3.1 Gen 1 ports available through the internal USB header


3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 4 x USB 3.1 Gen 1 ports on the back panel

1. iTE I/O Controller Chip

1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Overheating warning


5. Fan fail warning


6. Fan speed control
   Whether the fan speed control function is supported will depend on the cooler you install.

1. Support for APP Center
   Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart TimeLock
   Smart HUD
   Smart Survey
   System Information Viewer
   USB Blocker
   V-Tuner


2. Support for Q-Flash


3. Support for Xpress Install

1. Norton Internet Security (OEM version)


2. Realtek 8118 Gaming LAN Bandwidth Control Utility

1. 1 x PS/2 keyboard/mouse port


2. 1 x DVI-D port


3. 1 x HDMI port


4. 2 x USB 3.1 Gen 2 Type-A ports (red)


5. 4 x USB 3.1 Gen 1 ports


6. 2 x USB 2.0/1.1 ports


7. 1 x RJ-45 port


8. 6 x audio jacks

1. 1 x 24-pin ATX main power connector


2. 1 x 8-pin ATX 12V power connector


3. 1 x CPU fan header


4. 2 x system fan headers


5. 1 x M.2 Socket 3 connector


6. 6 x SATA 6Gb/s connectors


7. 1 x CPU cooler LED strip/RGB LED strip header


8. 1 x RGB (RGBW) LED strip header


9. 2 x digital LED strip headers


10. 2 x digital LED strip power select jumpers


11. 1 x front panel header


12. 1 x front panel audio header


13. 1 x S/PDIF Out header


14. 1 x USB 3.1 Gen 1 header


15. 2 x USB 2.0/1.1 headers


16. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)


17. 1 x serial port header


18. 1 x parallel port header


19. 1 x Clear CMOS jumper

1. 2 x 128 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. Support for DualBIOS™


4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for Windows 10 64-bit


2. Support for Windows 7 64-bit
   To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
   Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

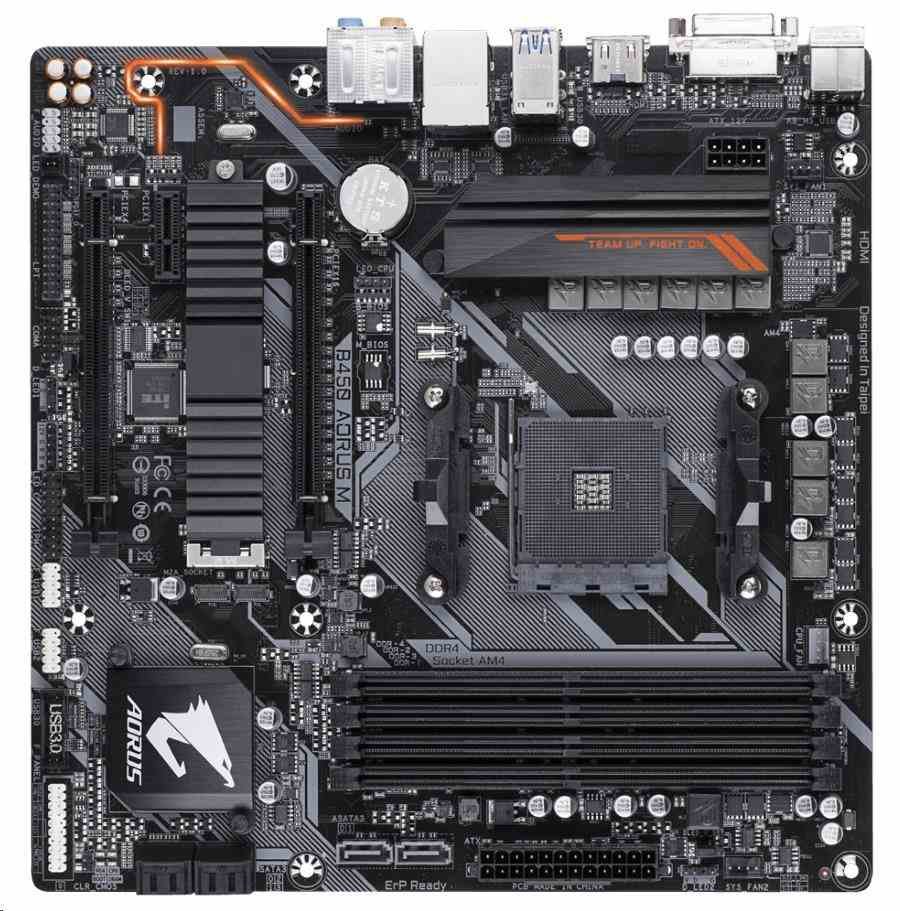

1. Micro ATX Form Factor; 24.4cm x 24.4cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.


2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
