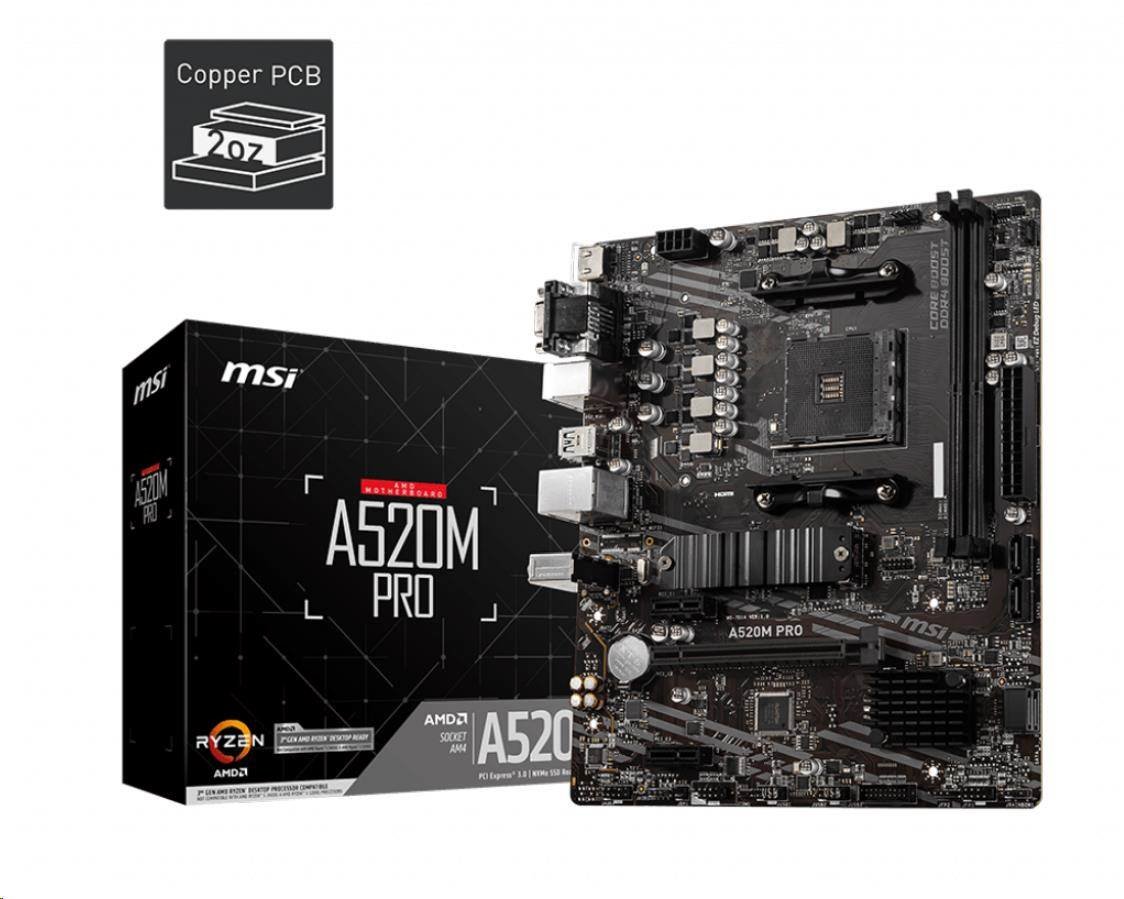

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX -

A520M PROSupport 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop ProcessorsSupports DDR4 Memory, up to 4600(OC) MHzTurbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDsM.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs... číst celé

A520M PRO

Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors

Supports DDR4 Memory, up to 4600(OC) MHz

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster

Core Boost: With premium layout and digital power design to support more cores and provide better performance

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability

Audio Boost: Reward your ears with studio grade sound quality

Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

TECHNICAL SPECIFICATIONS

Socket	AM4
CPU Support	Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset	AMD A520 Chipset
Memory	2x DDR4 memory slots, support up to 64GB - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe x16 slot (PCI_E2) 2x PCIe 3.0 x1 slots
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB
Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) - M2_1 slot (from AMD Processor) - Supports PCIe 3.0 x4 1 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO	Realtek ALC892 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek RTL8111H LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper
Back Panel Ports	VGA Keyboard / Mouse LAN port HDMI DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Audio Connectors
Dimensions	M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Mounting	6 mounting holes
Box Content	A520M Pro Quick Installation Guide MSI Case Badge 2x SATA Cables Product Registration Card I/O Shielding Driver DVD
Form Factor	m-ATX
Operating System	Support for Windows 10 64-bit
