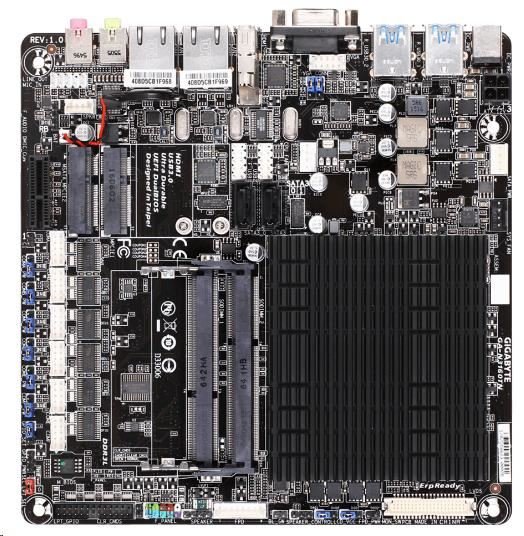

GIGABYTE MB N3160TN, Quad-Core Celeron® N3160 (1.6 GHz), Intel N3160, 2xDDR3L SO-DIMM, VGA, Thin Mini-ITX -

CPU Built in with an Intel Quad-Core Celeron N3160 SoC (1.6 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache Memory 2 x DDR3L SO-DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating... číst celé

CPU	Built in with an Intel Quad-Core Celeron N3160 SoC (1.6 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
Memory	2 x DDR3L SO-DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3L 1600 MHz memory modules * Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz Maximum shared memory of 512 MB
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1-channel
LAN	2 x Realtek GbE LAN chips (10/100/1000 Mbit) * Teaming is not supported.
Expansion Slots	1 x PCI Express x1 slot, running at x1 1 x half size Mini PCIe slot (MPCIE1) (The PCI Express x1 and Mini PCIe slots conform to PCI Express 2.0 standard.)
Storage Interface	Chipset: 2 x SATA 6Gb/s connectors 1 x MSATA connector (MSATA_MPCIE2)
USB	Chipset: 4 x USB 3.0/2.0 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x SATA 6Gb/s connectors 1 x MSATA connector (MSATA_MPCIE2) 1 x SATA power connector 1 x front panel header 1 x front panel audio header 1 x battery cable header 2 x USB 2.0/1.1 headers 6 x serial port headers 6 x serial port power select jumpers 1 x D-Sub header 1 x digital microphone header 1 x LVDS header 1 x LVDS drive voltage jumper 1 x flat panel display header 1 x flat panel display power jumper 1 x flat panel display switch header 1 x backlight switch header 1 x speaker header 1 x buzzer header 1 x chassis intrusion header 1 x LPT/GPIO header 1 x volume control header 1 x LPT configuration jumper 1 x GPIO power selection jumper 1 x GPIO status configuration jumper 1 x jumpers for switching USB signals 1 x Clear CMOS jumper
Back Panel Connectors	1 x DC In power connector 1 x HDMI port 1 x D-Sub port 4 x USB 3.0/2.0 ports 2 x RJ-45 ports 2 x audio jacks (Line Out, Mic In)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
Bundle Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 10/8.1/7 64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
