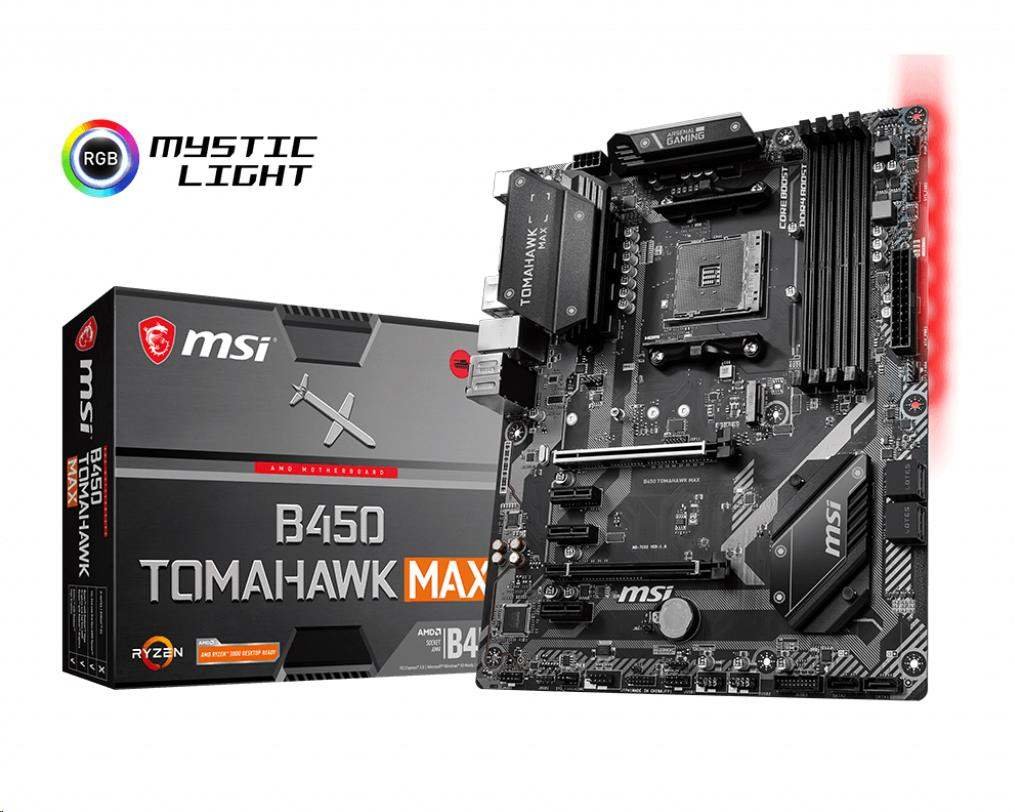

MSI MB Sc AM4 B450 TOMAHAWK MAX, AMD B450, VGA, 4xDDR4 -

B450 TOMAHAWK MAXMilitary style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connectorSupports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics /Athlon™ with... číst celé

B450 TOMAHAWK MAX
Military style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics /

Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Supports DDR4 Memory, up to 4133(OC) MHz

Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™

Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

TECHNICAL SPECIFICATIONS

SOCKET	AM4
CPU (MAX SUPPORT)	RYZEN 9
CHIPSET	AMD B450 Chipset
DDR4 MEMORY	1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133 by A-XMP OC mode For AMD Other CPU 2667/2800/2933/3000/3066/3200/3466 by A-XMP OC mode
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	64
PCI-E X16	2
PCI-E GEN	Gen3(PCI_E1), Gen2(PCI_E4)
PCI-E X1	3
SATAIII	6
M.2 SLOT	1
RAID	0/1/10
TPM (HEADER)	1
LAN	1x Realtek 8111H Gigabit LAN controller
USB 3.2 PORTS (FRONT)	2(Gen1, Type A)
USB 3.2 PORTS (REAR)	1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A)
USB 3.1 PORTS (FRONT)	2(Gen1, Type A)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	2
SERIAL PORTS(FRONT)	1
AUDIO PORTS (REAR)	Realtek ALC892 Codec
DVI-D	1
HDMI	1
DIRECTX	12
FORM FACTOR	ATX
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
