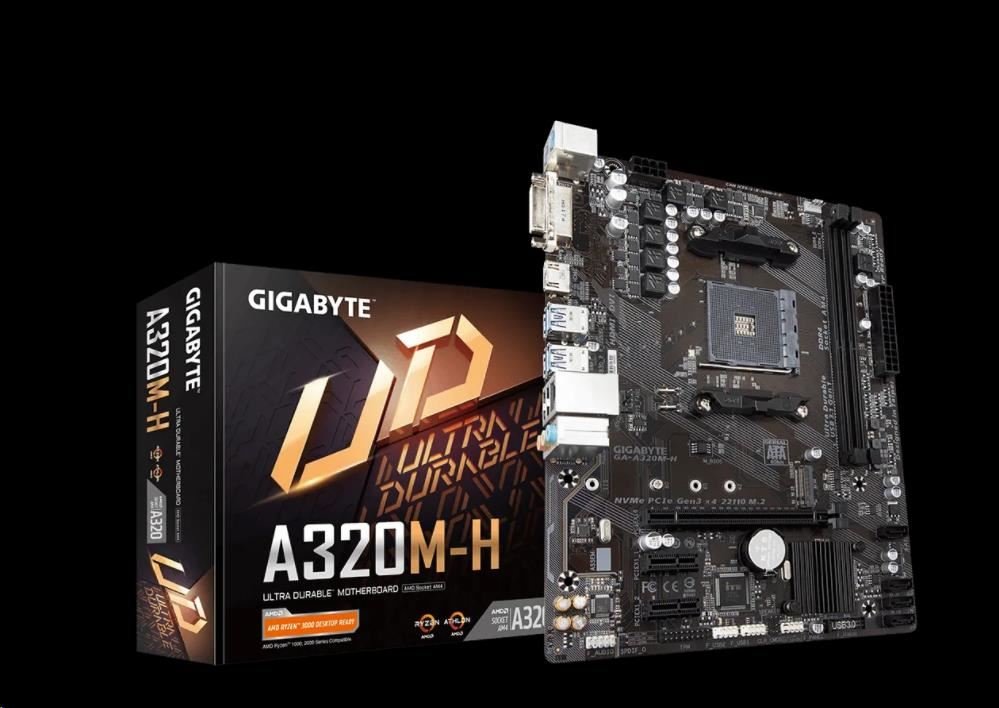

GIGABYTE MB Sc AM4 A320M-H (rev3.0), AMD A320, 2xDDR4, 1xHDMI, 1xDVI, mATX -

GA-A320M-H (rev. 3.0)AMD A320 Ultra Durable Motherboard with Hybrid Digital VRM Solution, NVMe PCIe 3.0 x4 22110 M.2, Realtek GbE LAN with cFosSpeed, Smart Fan 5, 2 Display Interfaces, Anti-Sulfur Resistors DesignSupports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with... číst celé

GA-A320M-H (rev. 3.0)

AMD A320 Ultra Durable Motherboard with Hybrid Digital VRM Solution, NVMe PCIe 3.0 x4 22110 M.2, Realtek GbE LAN with cFosSpeed, Smart Fan 5, 2 Display Interfaces, Anti-Sulfur Resistors Design

Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Hybrid Digital VRM Solution with Low RDS(on) MOSFETs

Ultra-Fast NVMe PCIe 3.0 x4 & SATA Mode M.2

Multiple Display with HDMI and DVI

High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers

Anti-Sulfur Resistors Design

TECHNICAL SPECIFICATIONS

CPU	AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Chipset	AMD A320
Memory	- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for DDR4 3200(O.C.)/2933(O.C.)/2667/2400/2133 MHz memory modules Actual support may vary by CPU. - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz Support for HDMI 1.4 version. Maximum shared memory of 2 GB Actual support may vary by CPU.
Audio	- Realtek audio codec - High Definition Audio - 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. - Support for S/PDIF Out
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	- 1 x PCI Express x16 slot, running at x16 (PCIEX16) Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface	- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support) Actual support may vary by CPU. - 4 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. (Note) Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
USB	Chipset: - 2 x USB 3.1 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: - 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	- Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	- 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	- Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer - Support for Q-Flash - Support for Xpress Install
Bundled Software	- Norton Internet Security (OEM version) - cFosSpeed
Operating System	- Support for Windows 10 64-bit - Support for Windows 7 64-bit To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Micro ATX Form Factor; 24.4cm x 19.5cm
