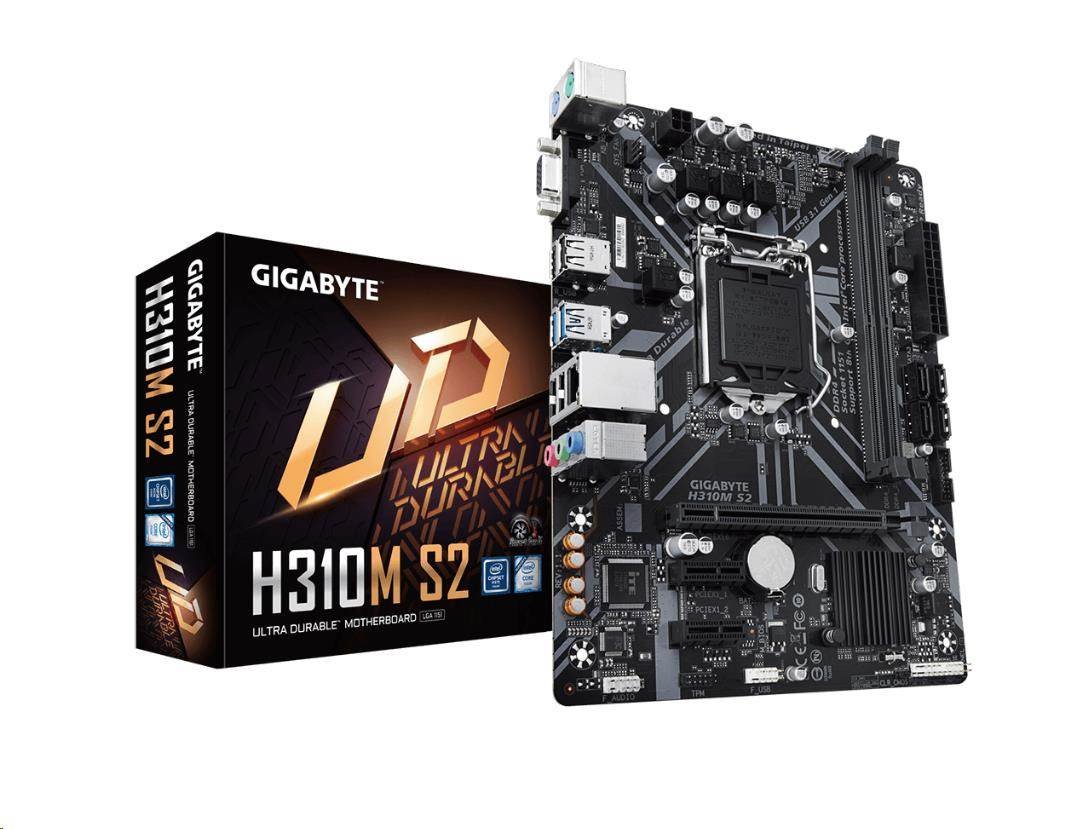

GIGABYTE MB Sc LGA1151 H310M S2, Intel H370, 2xDDR4, 1xVGA, mATX -

H310M S2H310M S2 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan5, CEC 2019 readySupports 9th and 8th Gen Intel Core™ ProcessorsDual Channel Non-ECC Unbuffered DDR48-Channel HD Audio with High Quality Audio CapacitorsGIGABYTE Exclusive 8118 Gaming LAN with... číst celé

H310M S2

H310M S2 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan5, CEC 2019 ready

Supports 9th and 8th Gen Intel Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4

8-Channel HD Audio with High Quality Audio Capacitors

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save Power With a Simple Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

All new GIGABYTE™ APP Center, simple and easy use

Anti-Sulfur Resistors Design

TECHNICAL SPECIFICATIONS

CPU	Support for 9th and 8th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel H370 Express Chipset
Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i7/i5 processor. (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Maximum shared memory of 1 GB
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface	4 x SATA 6Gb/s connectors
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
USB	Chipset: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Unique Features	Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
