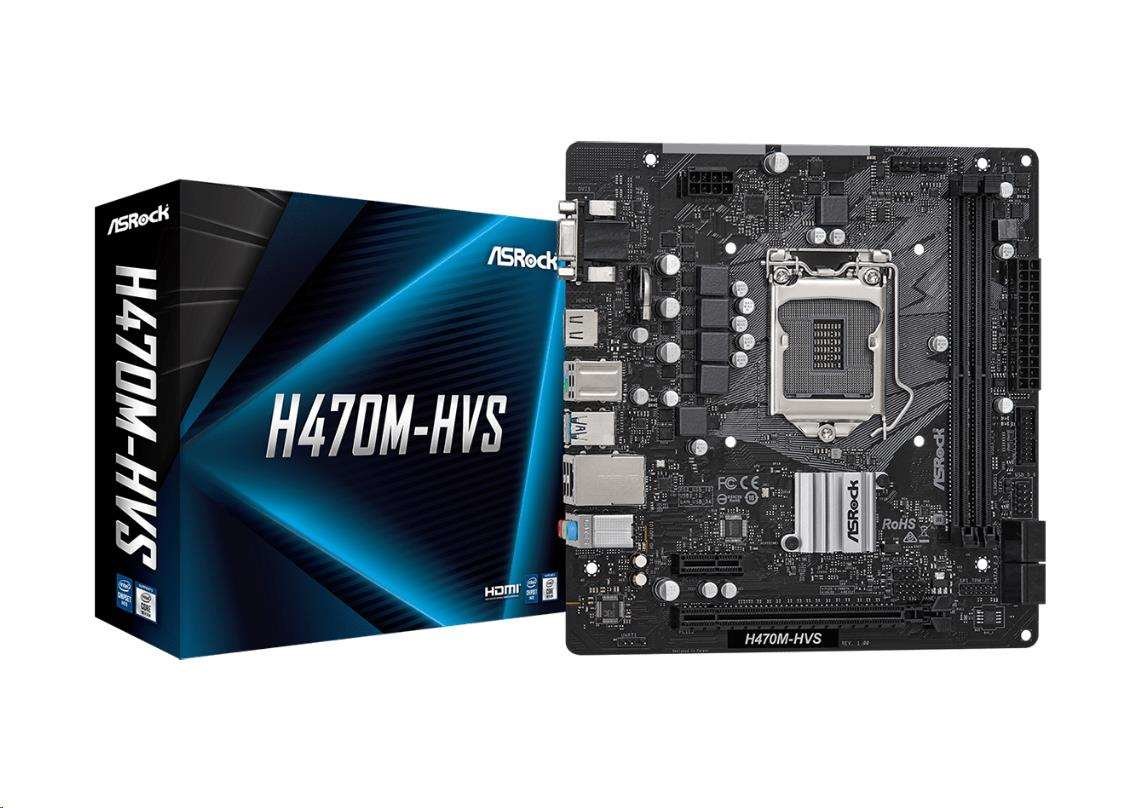

ASRock MB Sc LGA1200 H470M-HVS, Intel H470, 2xDDR4, 1xHDMI, 1xVGA, mATX -

H470M-HVSSupports 10th Gen Intel Core™ Processors (Socket 1200)Supports DDR4 2933MHz1 PCIe 3.0 x16, 1 PCIe 3.0 x1Graphics Output Options : HDMI, D-Sub7.1 CH HD Audio (Realtek ALC897 Audio Codec)4 SATA34 USB 3.2 Gen1 (2 Front, 2 Rear)TECHNICAL SPECIFICATIONS Unique FeatureASRock Super Alloy-... číst celé

H470M-HVS

Supports 10th Gen Intel Core™ Processors (Socket 1200)

Supports DDR4 2933MHz

1 PCIe 3.0 x16, 1 PCIe 3.0 x1

Graphics Output Options : HDMI, D-Sub

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

4 SATA3

4 USB 3.2 Gen1 (2 Front, 2 Rear)

TECHNICAL SPECIFICATIONS

Unique Feature	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 10th Gen Intel Core™ Processors (Socket 1200) - Digi Power design - 5 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology
Chipset	- Intel H470
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15µ Gold Contact in DIMM Slots Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium and Celeron support DDR4 up to 2666. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Graphics	- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc - Dual graphics output: support HDMI and D-Sub ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 Port - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS.
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Slots	- 1 x PCI Express 3.0 x16 Slot - 1 x PCI Express 3.0 x1 Slot Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
Connector	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - CASE OPEN detection - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm - Solid Capacitor design
OS	- Microsoft Windows 10 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
