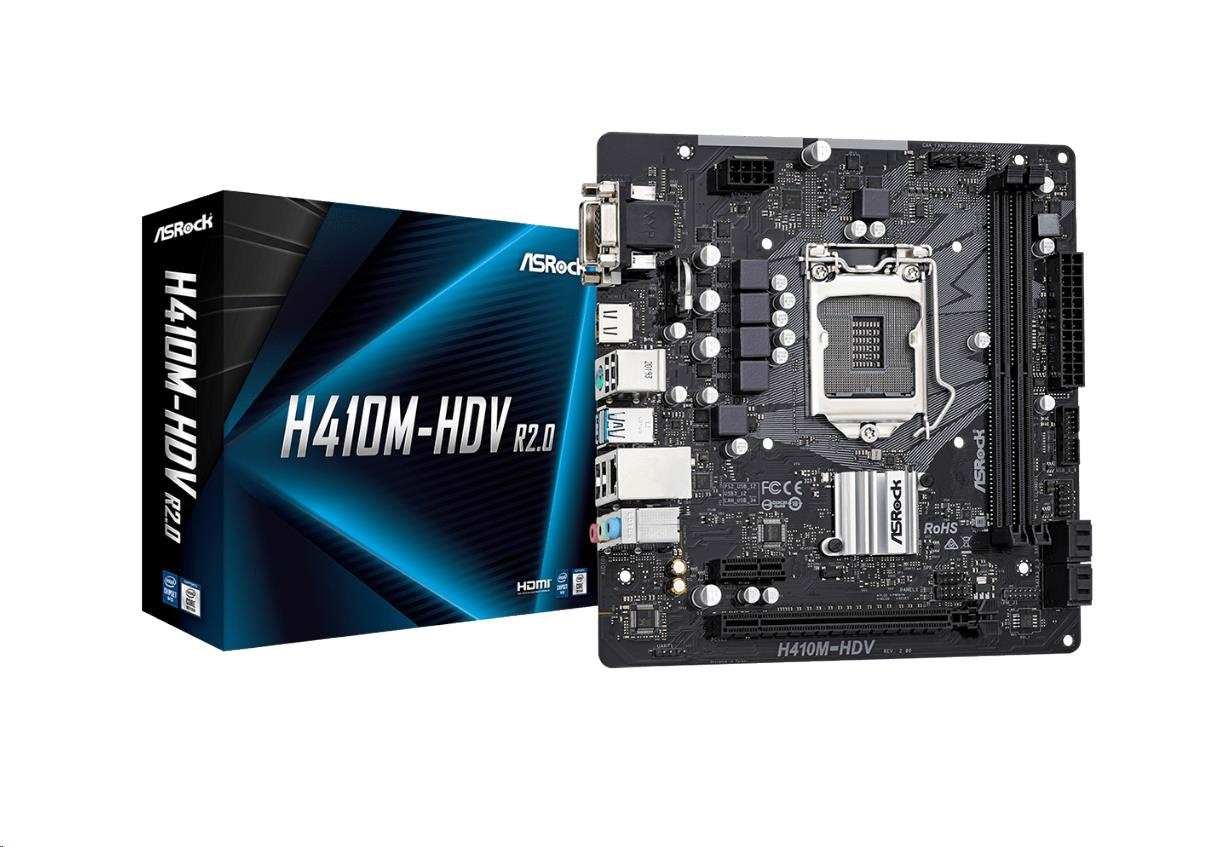

ASRock MB Sc LGA1200 H410M-HDV R2.0, Intel H410, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX -

H410M-HDV R2.0Supports 10th Gen Intel Core™ Processors (Socket 1200)Supports DDR4 2933MHz1 PCIe 3.0 x16, 1 PCIe 3.0 x1Graphics Output Options : HDMI, D-Sub, DVI7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)4 SATA34 USB 3.2 Gen1 (2 Front, 2 Rear)6 USB 2.0 (2 Front, 4 Rear)Intel Gigabit... číst celé

H410M-HDV R2.0

Supports 10th Gen Intel Core™ Processors (Socket 1200)

Supports DDR4 2933MHz

1 PCIe 3.0 x16, 1 PCIe 3.0 x1

Graphics Output Options : HDMI, D-Sub, DVI

7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

4 SATA3

4 USB 3.2 Gen1 (2 Front, 2 Rear)

6 USB 2.0 (2 Front, 4 Rear)

Intel Gigabit LAN

TECHNICAL SPECIFICATIONS

Unique Feature	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 10th Gen Intel Core™ Processors (Socket 1200) - Digi Power design - 5 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology
Chipset	- Intel H410
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory^[1] - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB^[2] - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15µ Gold Contact in DIMM Slots
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Graphics	- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 ^[4] - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI ^[3] Supports up to 2 displays simultaneously - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Audio	- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection
LAN	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Slots	- 1 x PCI Express 3.0 x16 Slot^[5] - 1 x PCI Express 3.0 x1 Slot
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) ^[6] - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ^[7] - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - CASE OPEN detection - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm - Solid Capacitor design
OS	- Microsoft Windows 10 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

[1] Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium and Celeron support DDR4 up to 2666.

[2] Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

[3] Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

[4] VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS.

[5] Supports NVMe SSD as boot disks

[6] The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

[7] The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
