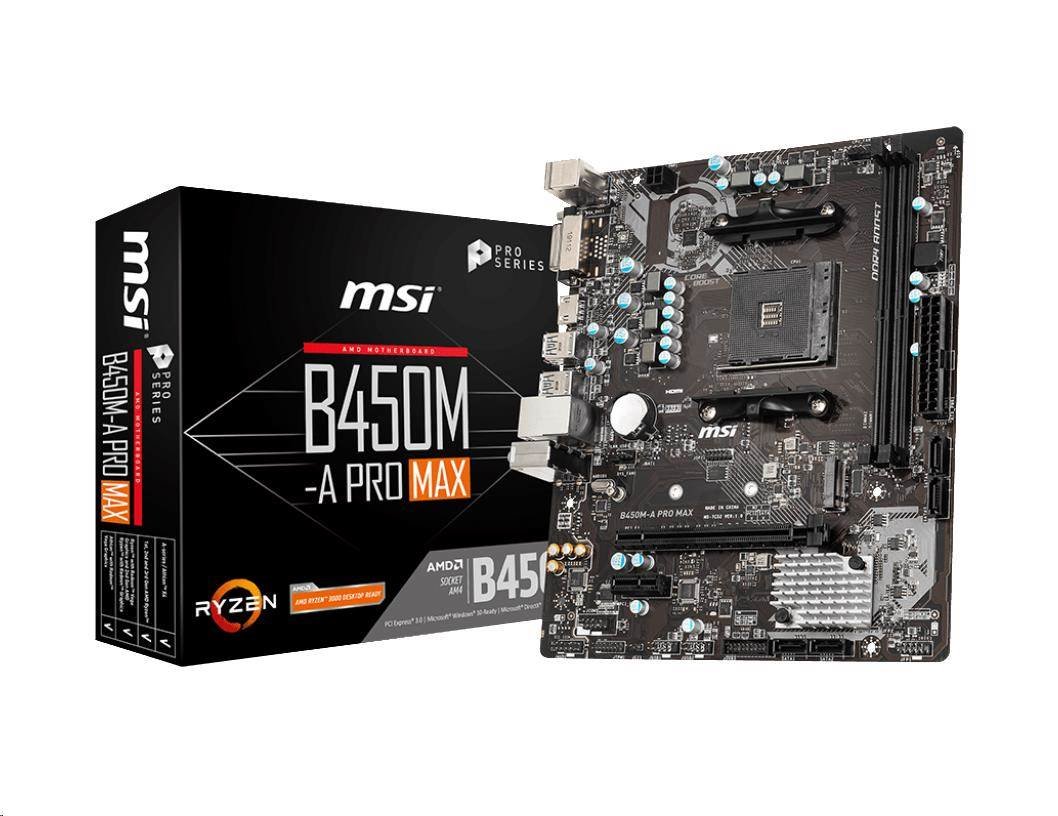

MSI MB Sc AM4 B450M-A PRO MAX, AMD B450, 2xDDR4, VGA, mATX -

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4... číst celé

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4

Supports DDR4 Memory, up to 4133 (OC) MHz

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Audio Boost: Reward your ears with studio grade sound quality.

X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

TECHNICAL SPECIFICATIONS

PROCESSOR	Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
CHIPSET	AMD B450 Chipset
MEMORY	2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required. Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory
SLOTS	1 x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen™ Supports x8 speed Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics A-series Athlon™ X4 Supports x4 speed AMD Athlon™ with Radeon™ Vega Graphics PCIe 2.0 x1 slot
ONBOARD GRAPHICS	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
STORAGE	AMD B450 Chipset 4x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics Supports PCIe 3.0 x2 and SATA 6Gb/s AMD Athlon™ with Radeon™ Vega Graphics A-series Athlon™ X4 Supports 2242/2280/22110 storage devices
USB	AMD B450 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO	Realtek ALC892 Codec 7.1-Channel High Definition Audio
LAN	1 x Realtek 8111H Gigabit LAN controller
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper
BACK PANEL PORTS	Mouse DVI-D Port USB 3.2 Gen1 LAN Port Keyboard HDMI Port USB 2.0 Ports HD Audio Connectors
DIMENSIONS	9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) m-ATX Form Factor
MOUNTING	6 mounting holes
OPERATING SYSTEM	Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
